Lexmark C792 series - HTU Upper Guide Removal

4-332 Service Manual
5062
Go Back
Previous
Next

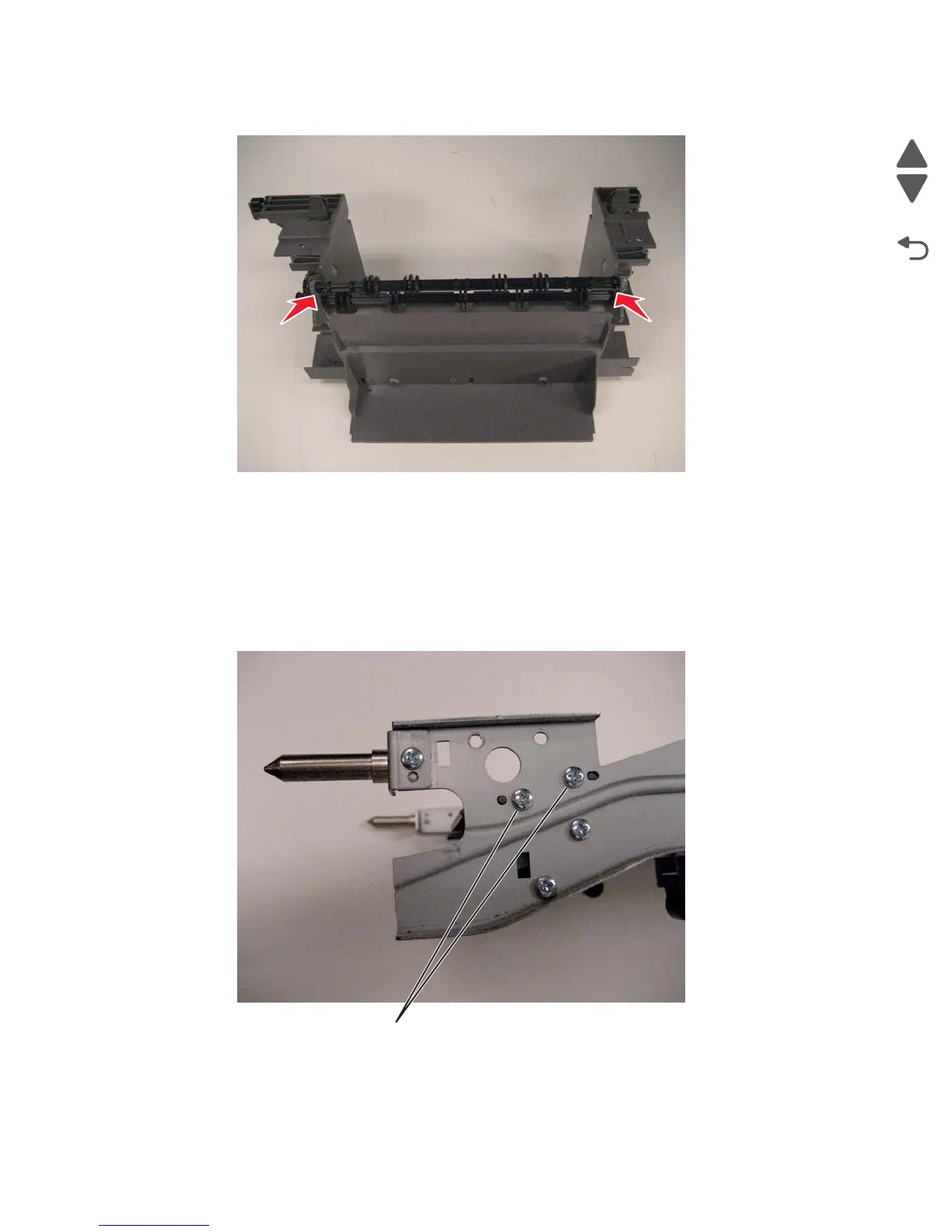

3. Unsnap the upper exit shaft out of the cover.
HTU upper guide removal
1. Remove all output options from the printer.
2. Remove the top redrive cover. See “HTU top redrive cover removal” on page 4-328.
3. Remove the two screws (A) from the front.
A (3015189)
