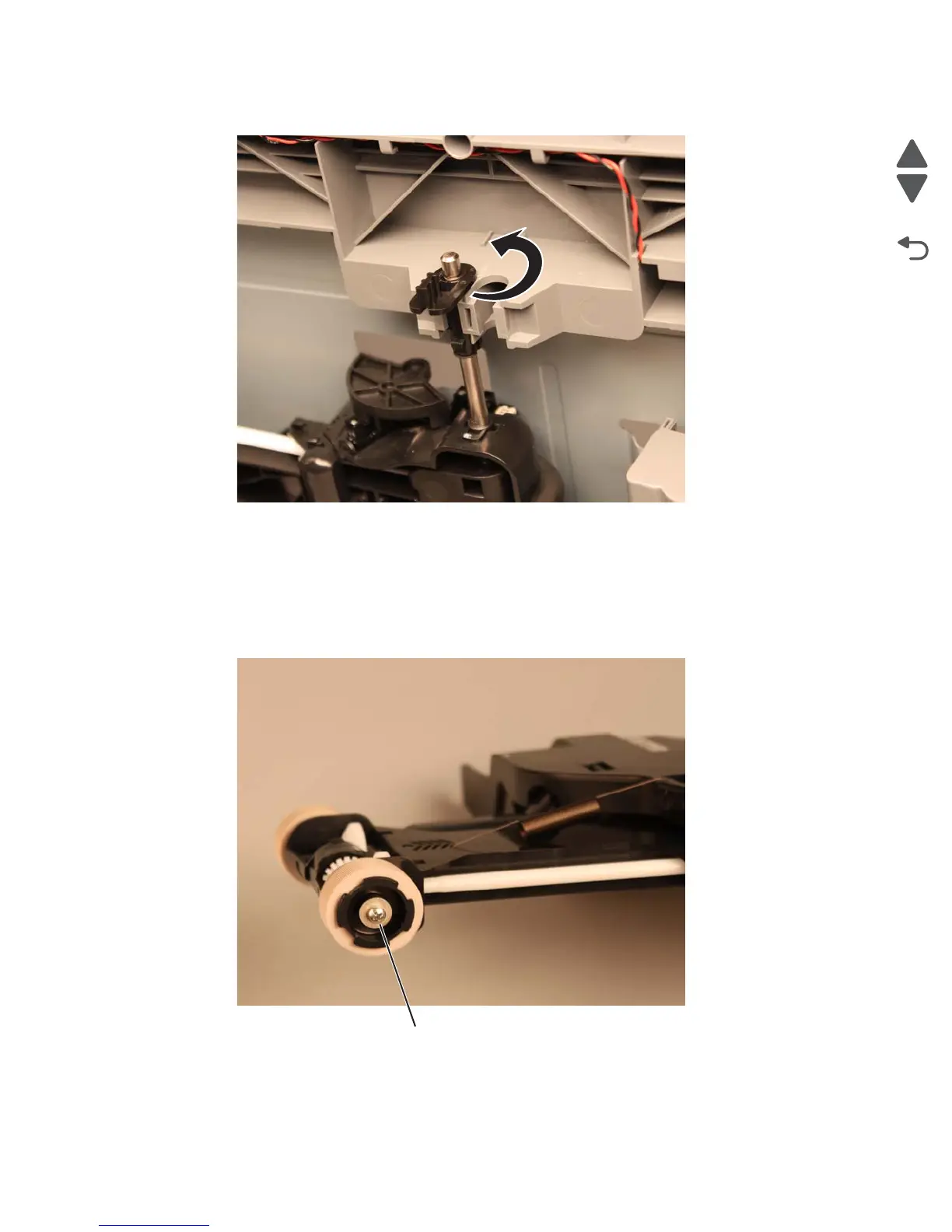

3. Be sure that the tab is aligned in the opening and then turn the shaft counterclockwise.
550-sheet tray pick roll assembly removal
See“Optional 550-sheet drawer assembly” on page 7-19 for the part number.
1. Remove the media tray assembly. See “550-sheet media tray assembly removal” on page 4-166.
2. Remove the pick assembly. See “550-sheet tray pick assembly removal” on page 4-176.
3. Remove the screw (A) securing the pick tire to the pick arm.
4. Remove the pick tire.
5. Repeat steps 3-4 to remove the other pick tire.
A (88A0412)
