Finisher or stacker front cover removal

See “Finisher/High-capacity output stacker assembly” on page 7-25 for the part number.

1. Remove the option from the printer.

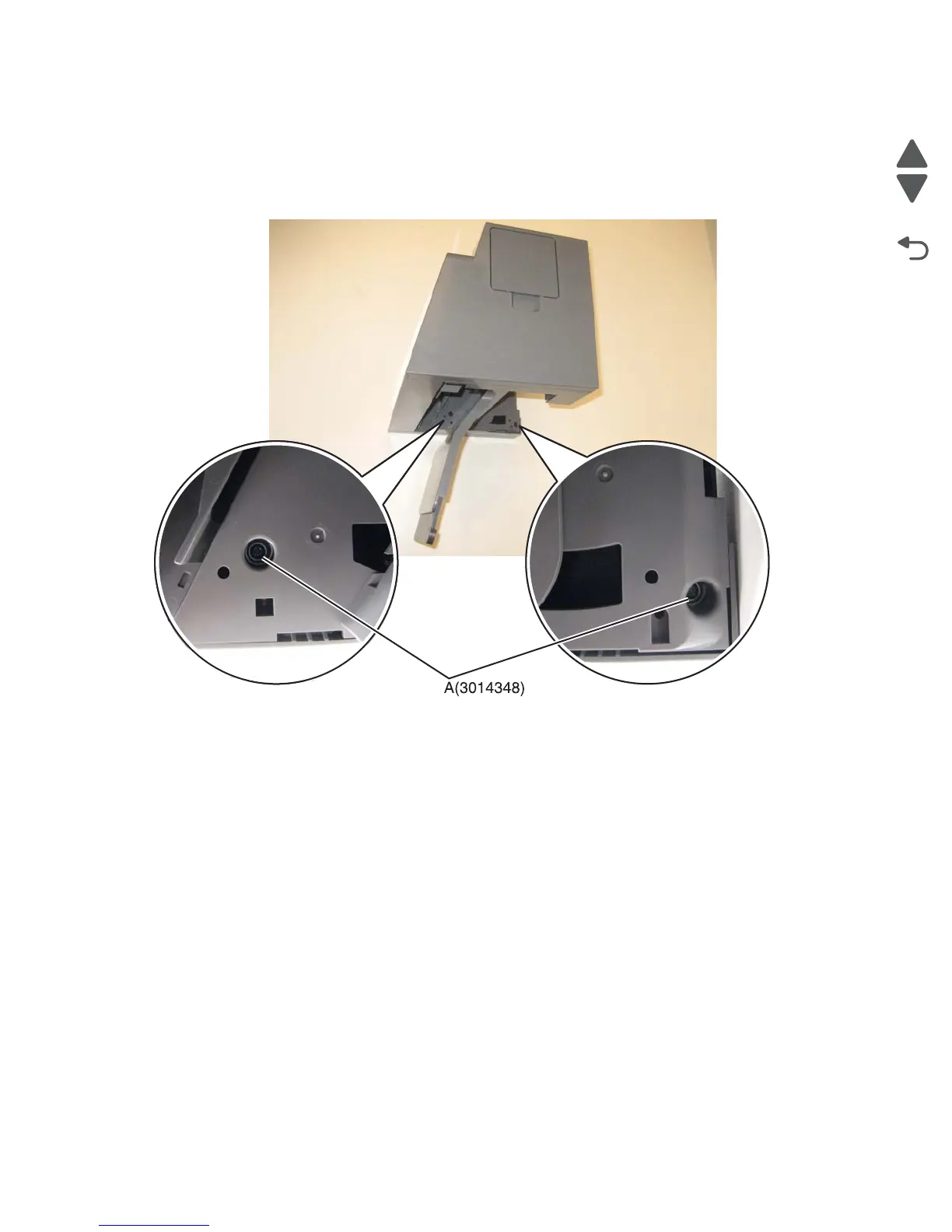

2. Remove the two screws (A) on the inside of the exit bin compartment.
