Lexmark C792 series - High-Voltage Power Supply (HVPS) Board Removal

Repair information 4-71
5062
Go Back
Previous
Next
High-voltage power supply (HVPS) board removal
See “Front” on page 7-7 for the part number.
1. Remove the ITU block assembly. See “ITU block assembly removal” on page 4-80.
2. Remove the rear cover. See “Rear cover removal” on page 4-20.

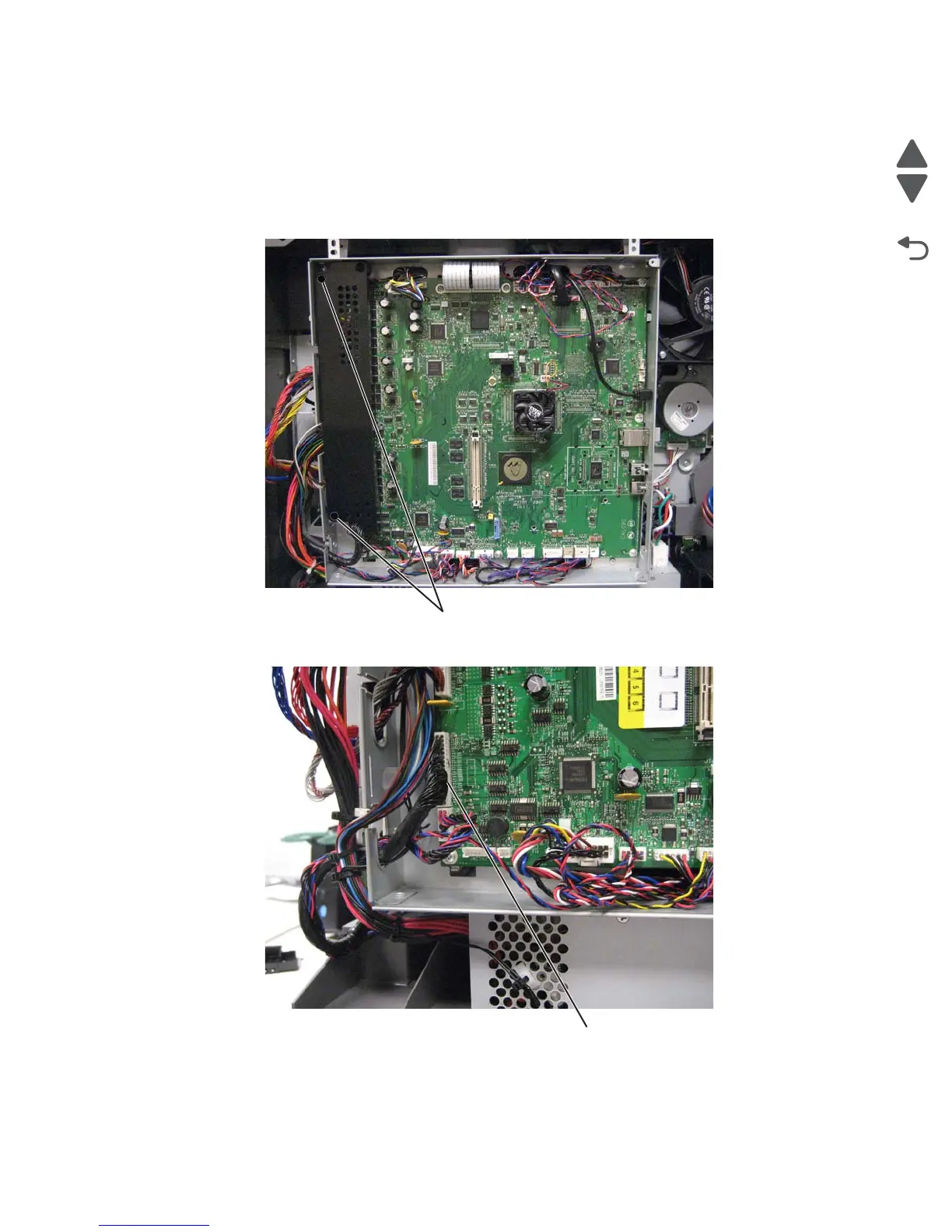

3. Remove the two screws (A) to remove the connector shield from the system board.
4. Disconnect the HVPS cable (B) from the system board.
A (88A0232)
B
