4-244 Service Manual
5062
5-bin mailbox media bin full actuator removal
See“5-bin mailbox assembly (interior)” on page 7-37 for the part number.
1. Remove the front cover. See “5-bin mailbox front cover removal” on page 4-242.

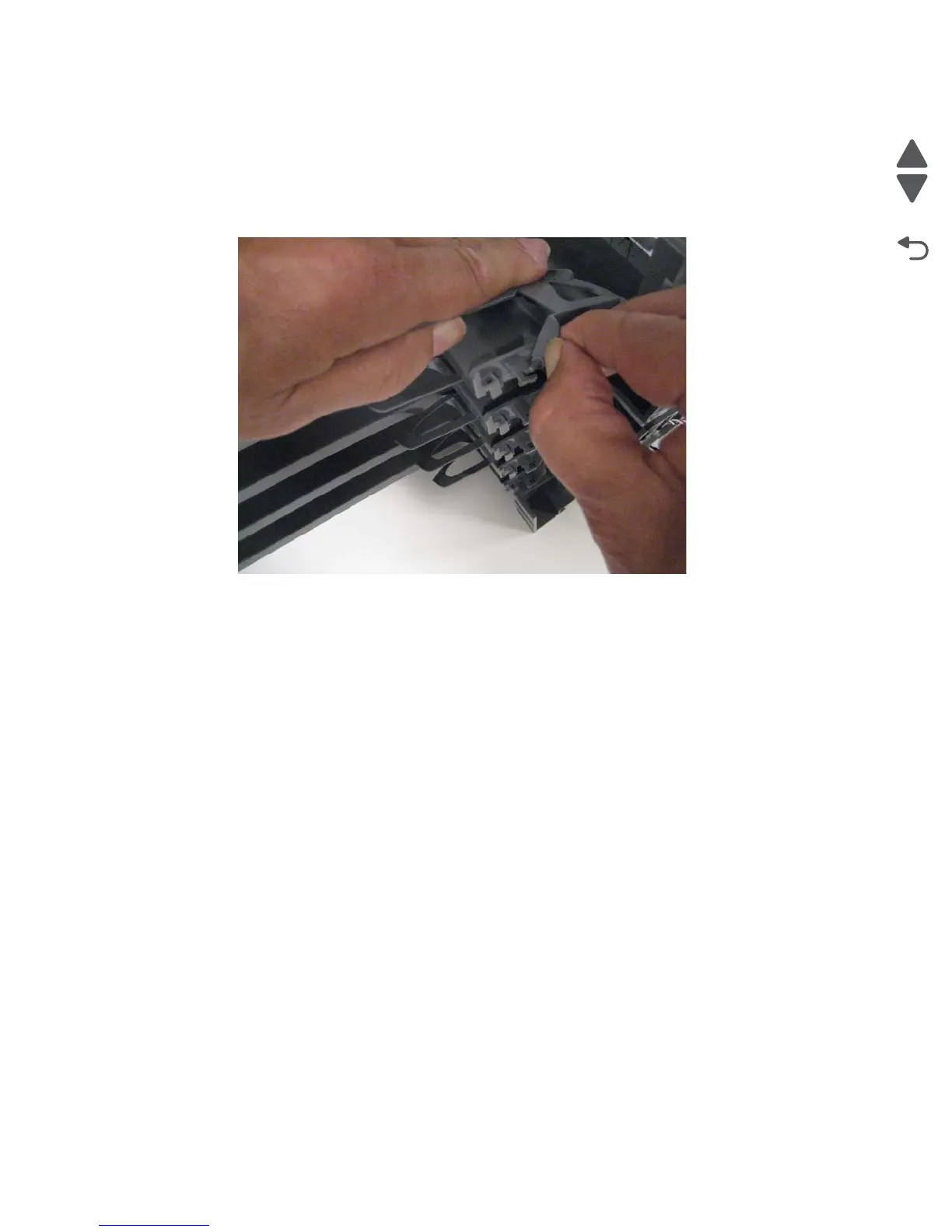

2. Pry the front hinge of the media bin full actuator towards the rear until the front boss is released from its
socket.
3. Pull the media bin full actuator toward the front and out of 5-bin mailbox assembly.
