Lexmark C792 series - HTU Top Right Cover Removal

To Next Page

To Previous Page

Repair information 4-329

5062

Go Back

HTU top right cover removal

1. Remove all output options from the printer.

2. Remove the rear standard bin cover. See “HTU rear standard bin cover removal” on page 4-312.

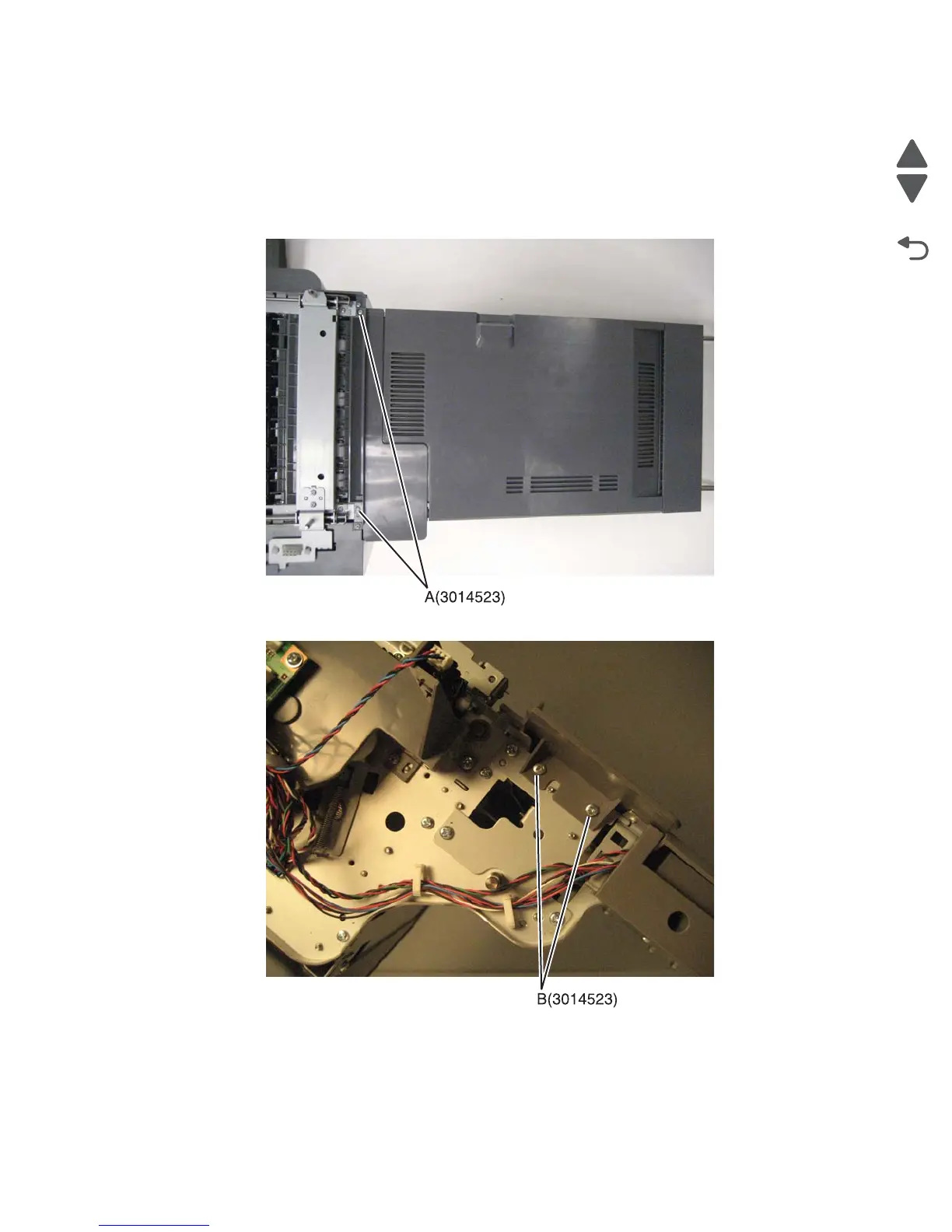

3. Remove two screws (A) from the top.

4. Remove two screws (B) from the rear, and then remove the top cover.
