Lexmark C792 series - HTU Locking Lever Removal

To Next Page

To Previous Page

Repair information 4-295

5062

Go Back

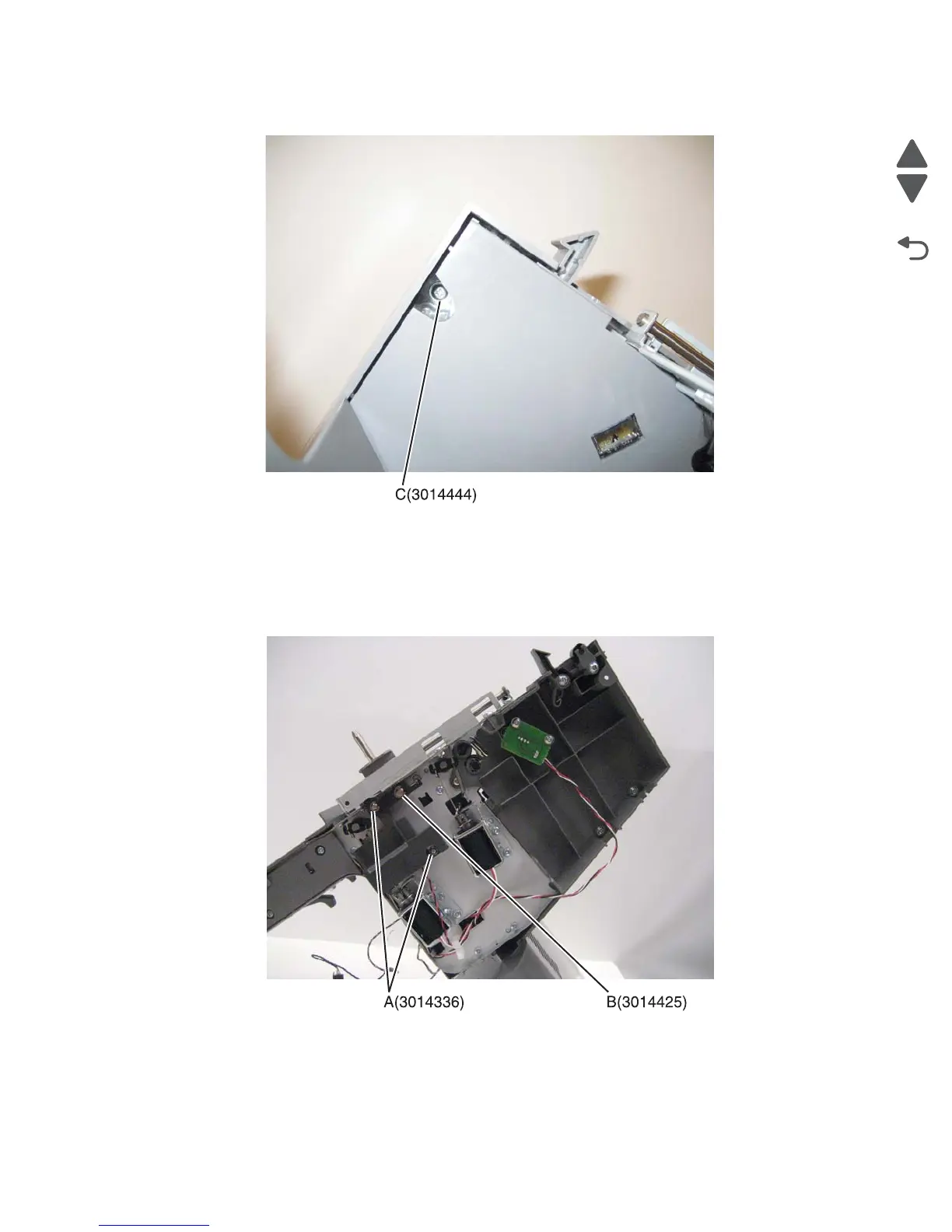

4. Remove the screw (C) inside the output bin, and remove the cover.

HTU locking lever removal

1. Remove the front standard bin cover. See “HTU front standard bin cover removal” on page 4-294.

2. Remove the two E-Clips (A) and the one E-clip (B) holding the locking lever.
