5-bin mailbox top cover removal
See“5-bin mailbox assembly (covers)” on page 7-35 for the part number.
1. Remove the mailbox from the printer.
2. Remove the front cover. See “5-bin mailbox front cover removal” on page 4-242.

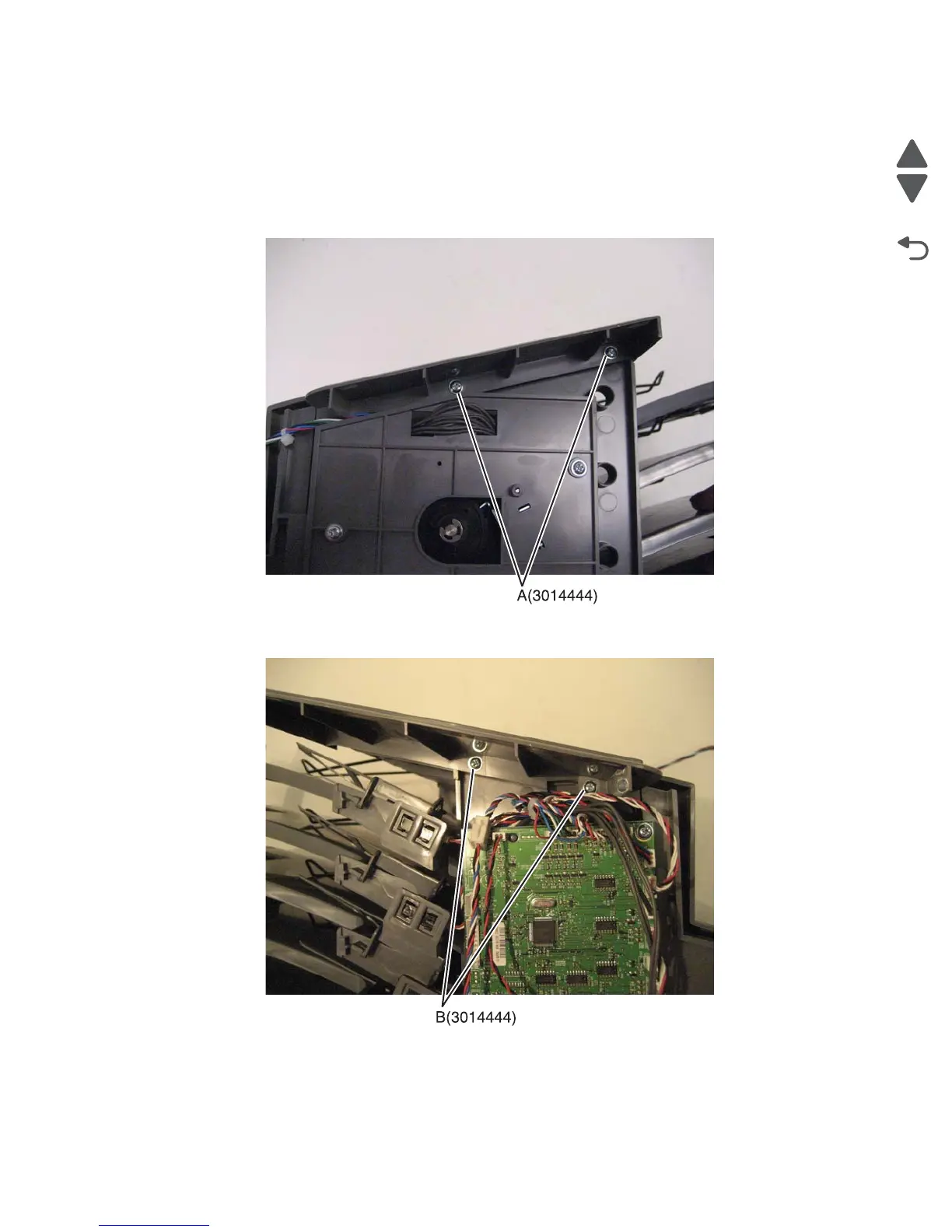

3. Remove the two screws (A), and remove the top cover.
4. Remove the rear cover. See “5-bin mailbox rear cover removal” on page 4-249.
5. Remove the two screws (B), and then lift off the top cover.
