Lexmark C792 series - 2000-Sheet High-Capacity Feeder Left Side Cover Removal

To Next Page

To Previous Page

4-204 Service Manual

5062

Go Back

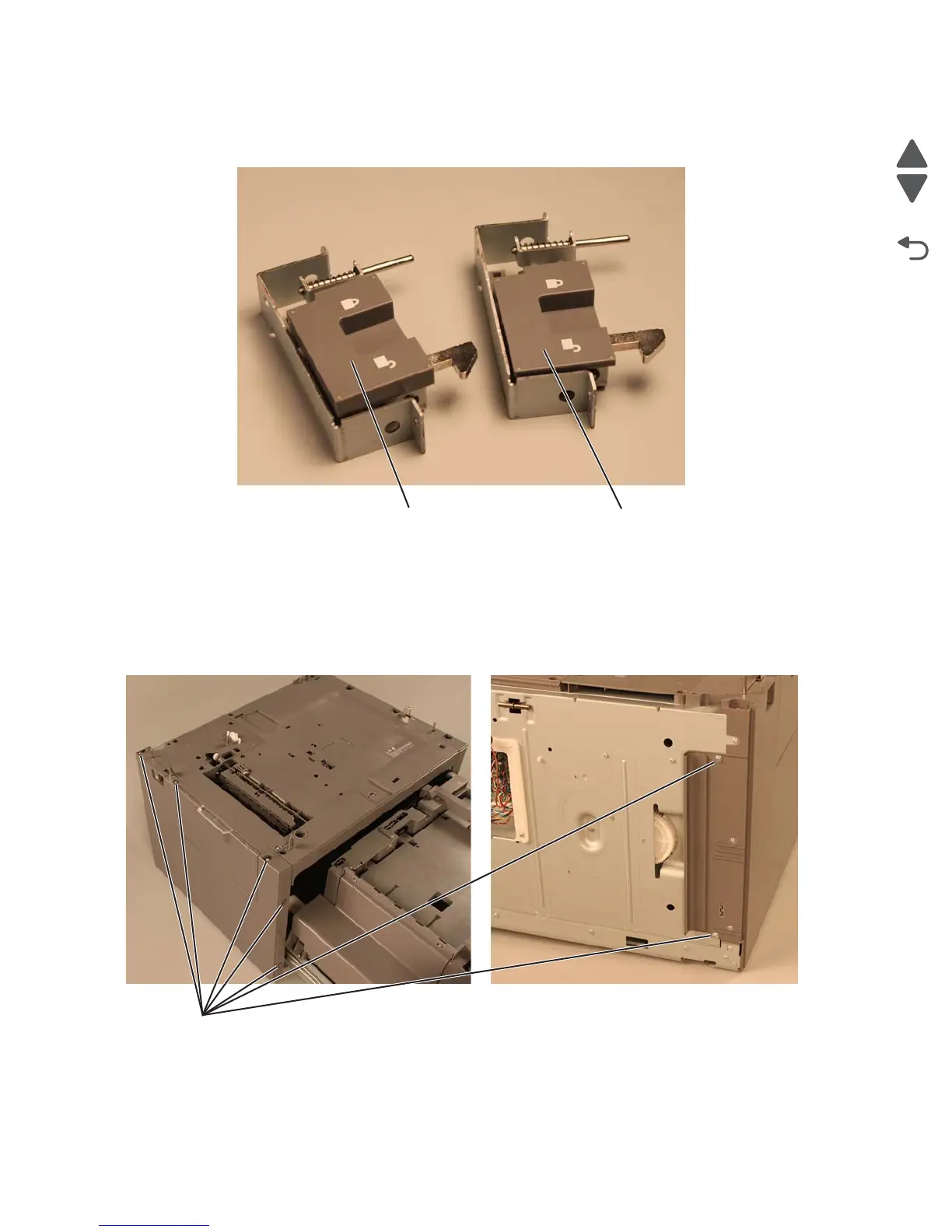

Installation note:

The right anti-tip latch assembly (A) is thinner compared to the left-anti-tip latch assembly (B).

2000-sheet high-capacity feeder left side cover removal

See“Optional 2000-sheet high-capacity feeder” on page 7-23 for the part number.

1. Remove the rear cover. See “2000-sheet high-capacity feeder rear cover removal” on page 4-228.

2. Open the media tray assembly.

3. Remove the seven screws (A) securing the left side cover to the drawer.

4. Open the jam clearance cover.

A (88A0442)
