Finisher or stacker top cover removal
See “Finisher/High-capacity output stacker assembly” on page 7-25 for the part number.
1. Remove the option from the printer.
2. Remove the front cover. See “Finisher or stacker front cover removal” on page 4-260.
3. Remove the rear cover. See “Finisher or stacker rear cover removal” on page 4-269.

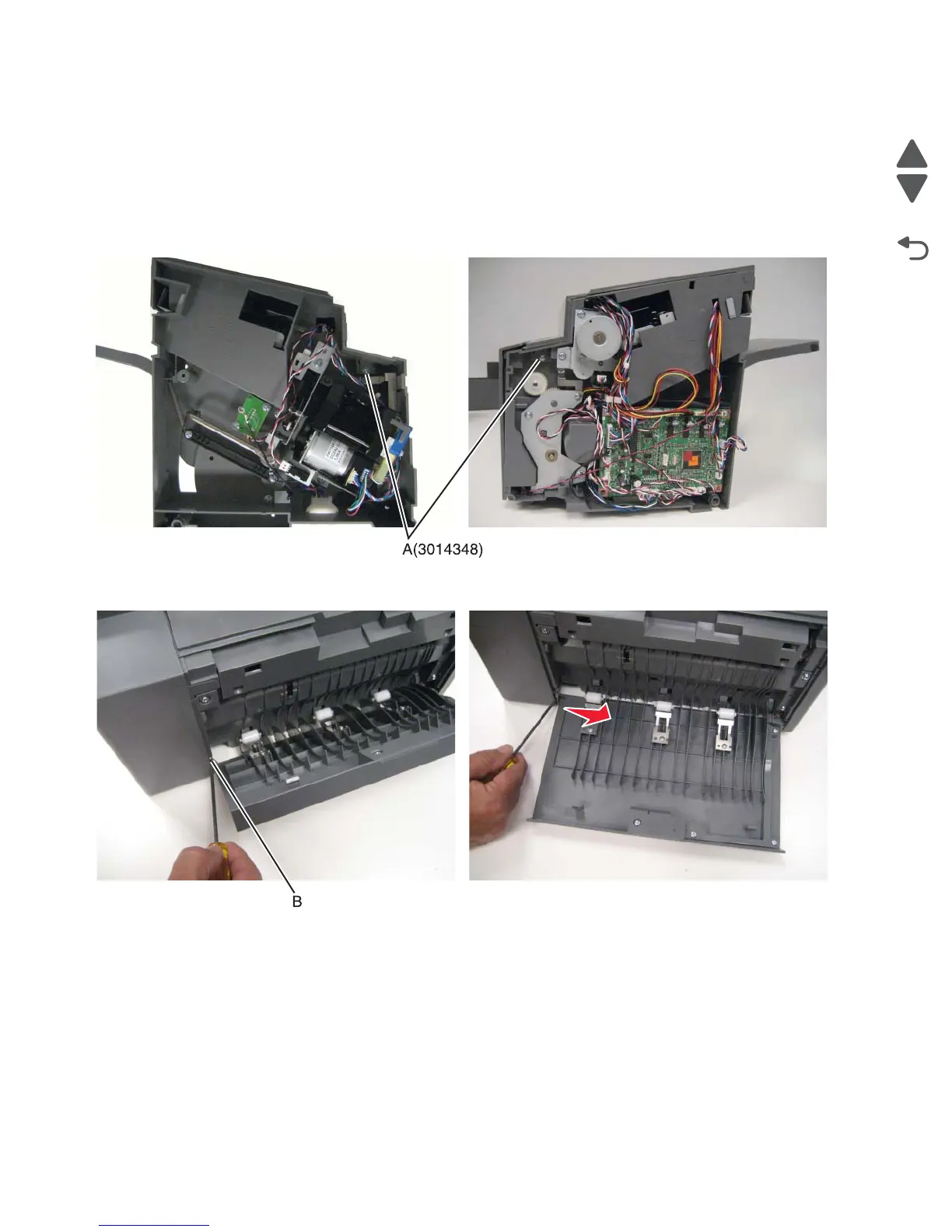

4. Remove the screw (A) on each side of the top cover.
5. Open the left access door, and use a screwdriver to force the rear hinge (B) out of the slot by pushing the
door to the front.
