Lexmark C792 series - ITU Block Assembly Removal

4-80 Service Manual
5062
Go Back
Previous
Next

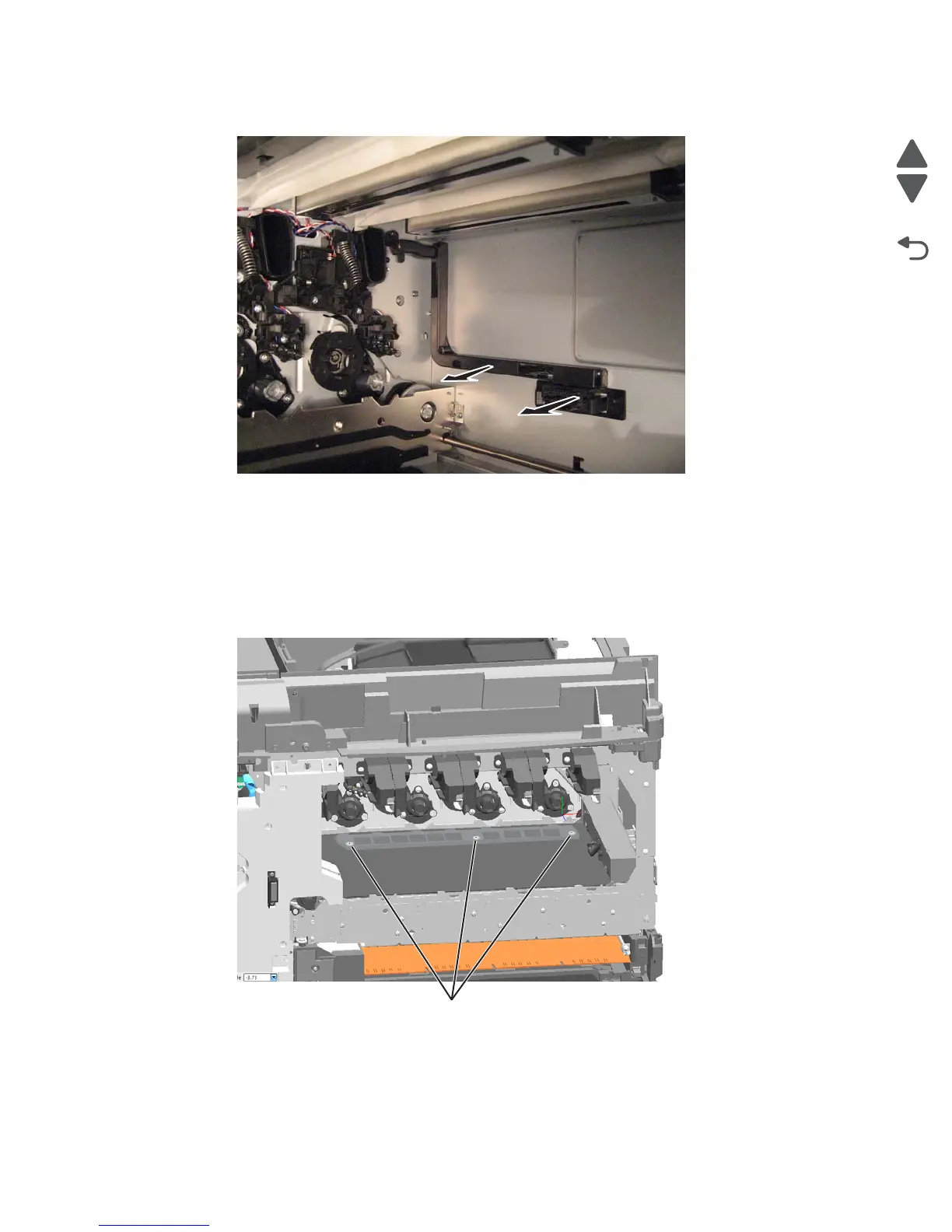

8. Pull to remove the autoconnect.
ITU block assembly removal
See “Front” on page 7-7 for the part number.
1. Remove the ITU assembly. See “ITU assembly removal” on page 4-77.
2. Remove the three screws (A) from the ITU block assembly.
A (88A0323)
