Lexmark C792 series - HTU Front Standard bin Cover Removal

To Next Page

To Previous Page

4-294 Service Manual

5062

Go Back

HTU front standard bin cover removal

1. Remove all output options from the printer.

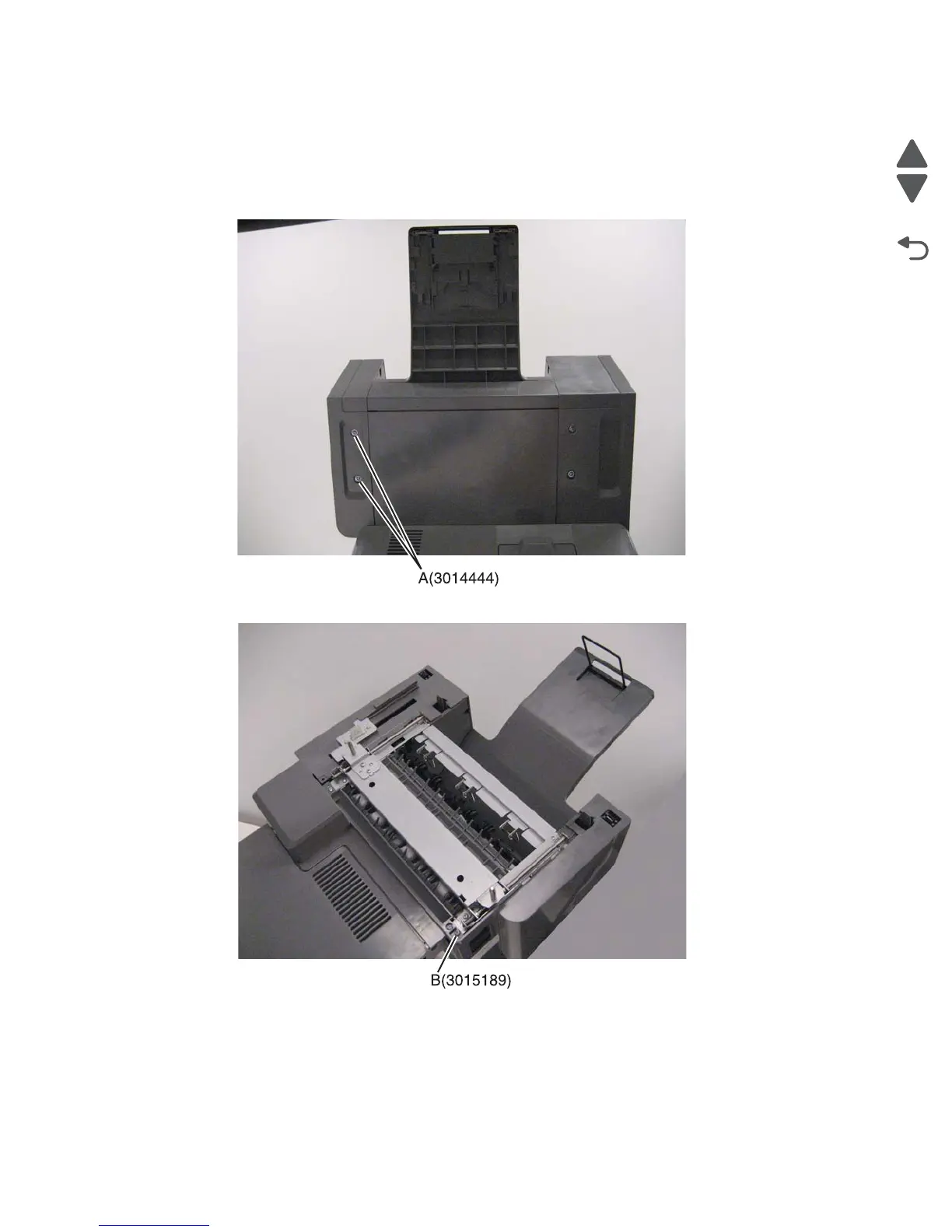

2. Remove two screws (A) from the bottom.

3. Remove the screw (B) from the top.
