Top cap cover removal

See “Top, right, and front covers” on page 7-3 for the part number.

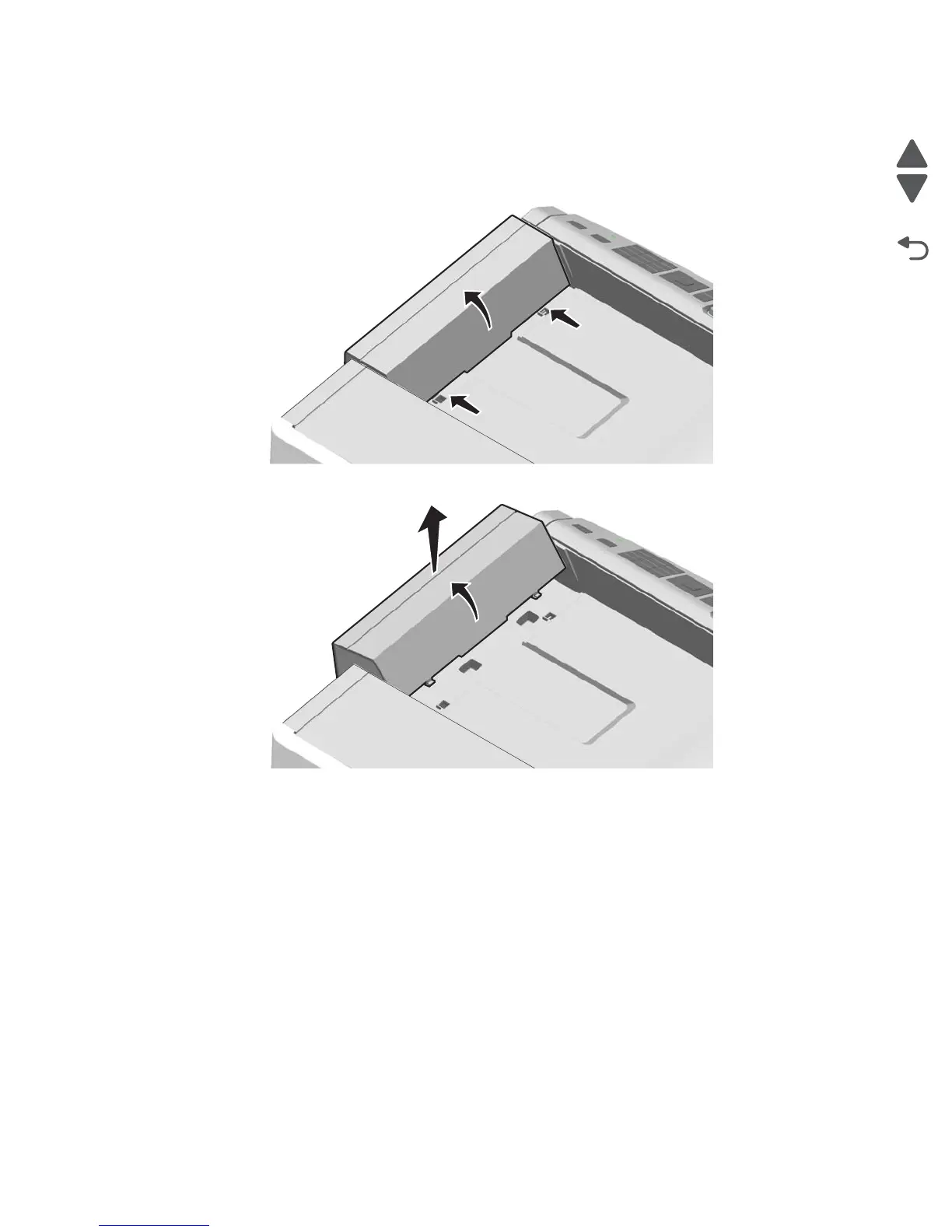

1. Squeeze the cover and rock it back to disengage the latches.

2. With the cover tilted back, and pull up to remove it.
