Lexmark C792 series - 2000-Sheet High-Capacity Feeder Pick Assembly Removal

To Next Page

To Previous Page

4-218 Service Manual

5062

Go Back

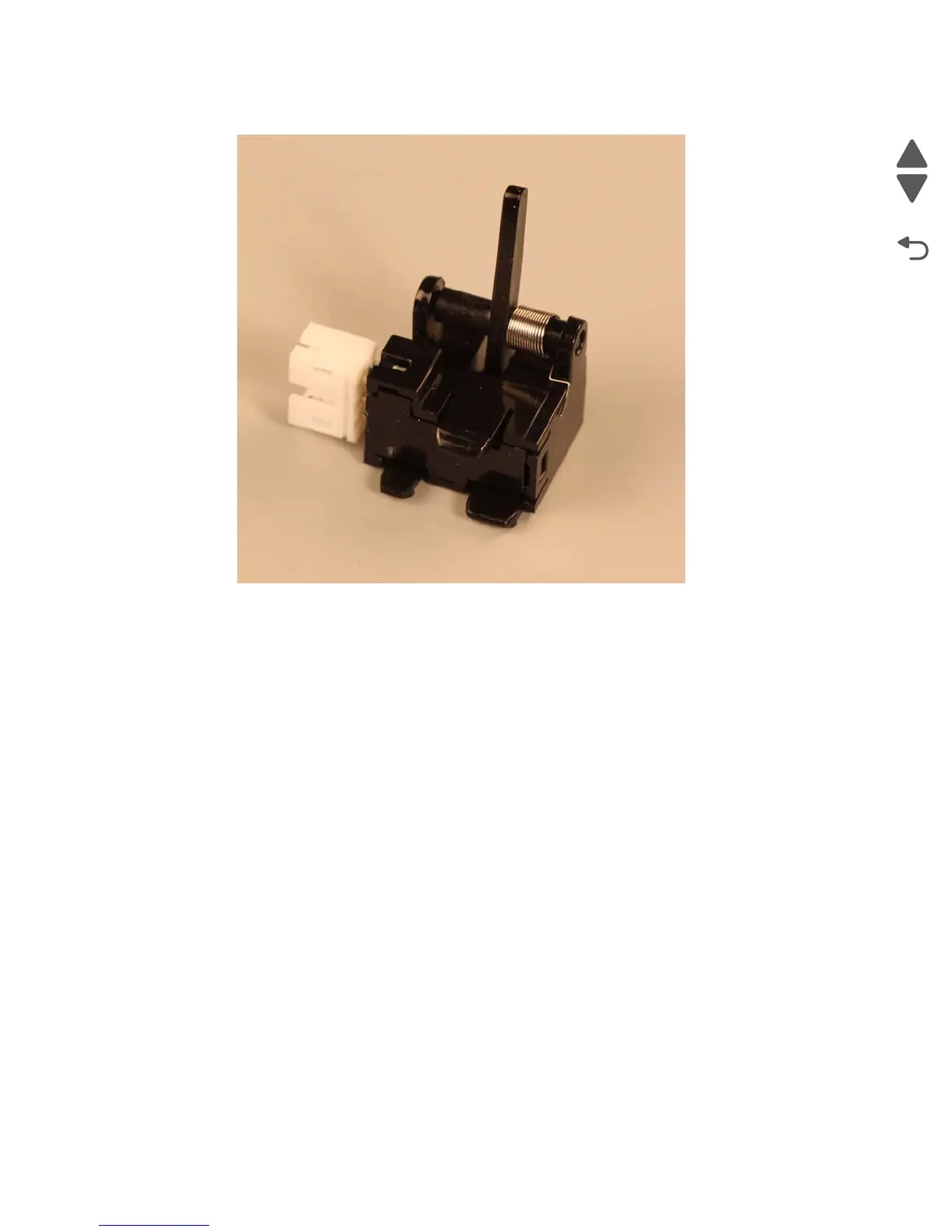

5. Remove the pass thru sensor.

2000-sheet high-capacity feeder pick assembly removal

See“Optional 2000-sheet high-capacity feeder” on page 7-23 for the part number.

1. Remove the media tray assembly. See “2000-sheet high-capacity feeder media tray assembly

removal” on page 4-215.

2. Remove the jam clearance top cover. See “2000-sheet high-capacity feeder jam clearance top cover

removal” on page 4-198.

3. Remove the rear cover. See “2000-sheet high-capacity feeder rear cover removal” on page 4-228.

4. Remove the right side cover. See “2000-sheet high-capacity feeder right side cover removal” on

page 4-231.
