Repair information 4-231
5062
Installation note:

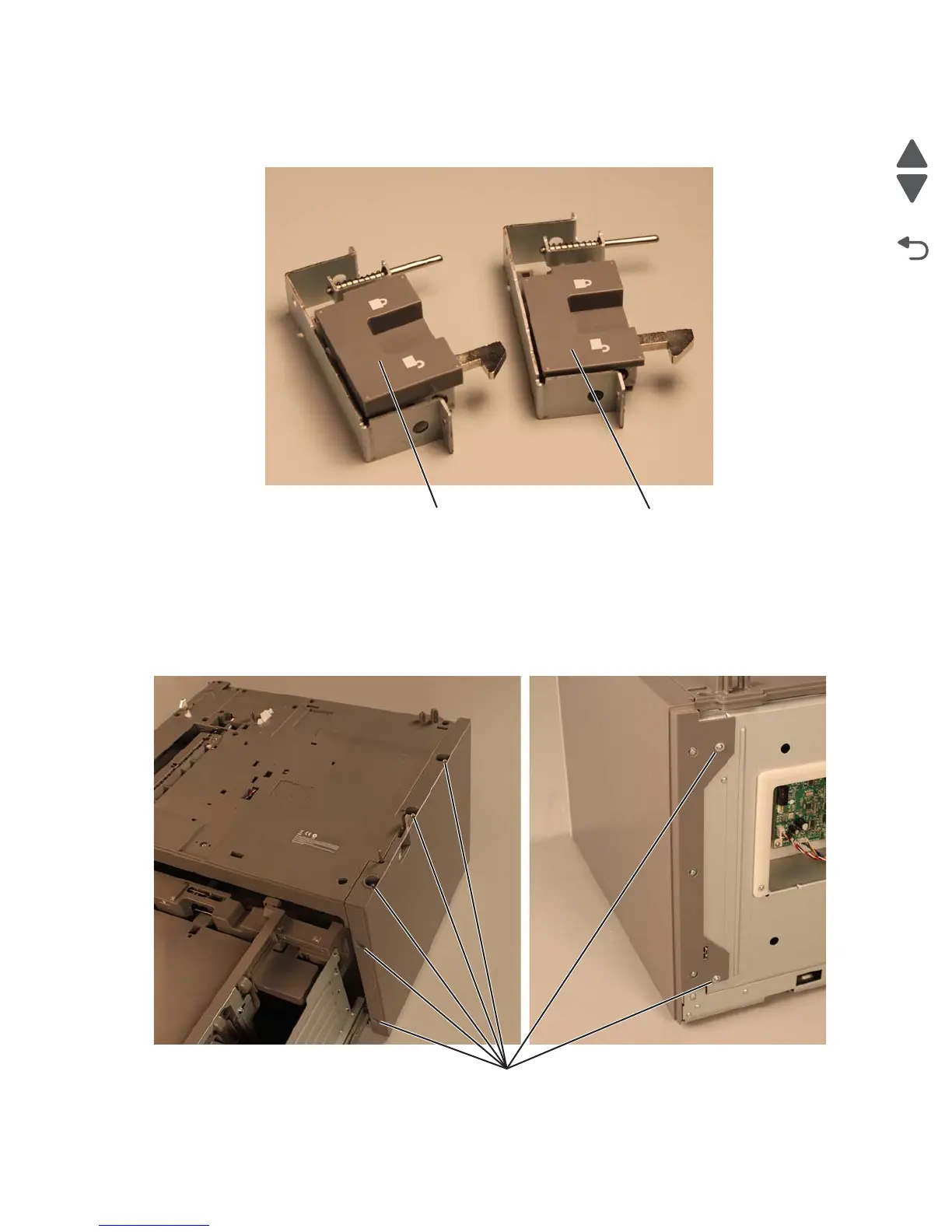

The right anti-tip latch assembly (A) is thinner compared to the left-anti-tip latch assembly (B).
2000-sheet high-capacity feeder right side cover removal
See“Optional 2000-sheet high-capacity feeder” on page 7-23 for the part number.
1. Remove the rear cover. See “2000-sheet high-capacity feeder rear cover removal” on page 4-228.
2. Open the media tray assembly.
3. Remove the seven screws (A) securing the right side cover to the drawer.
