Lexmark C792 series - HTU Drive Gear Spring Removal

To Next Page

To Previous Page

Repair information 4-291

5062

Go Back

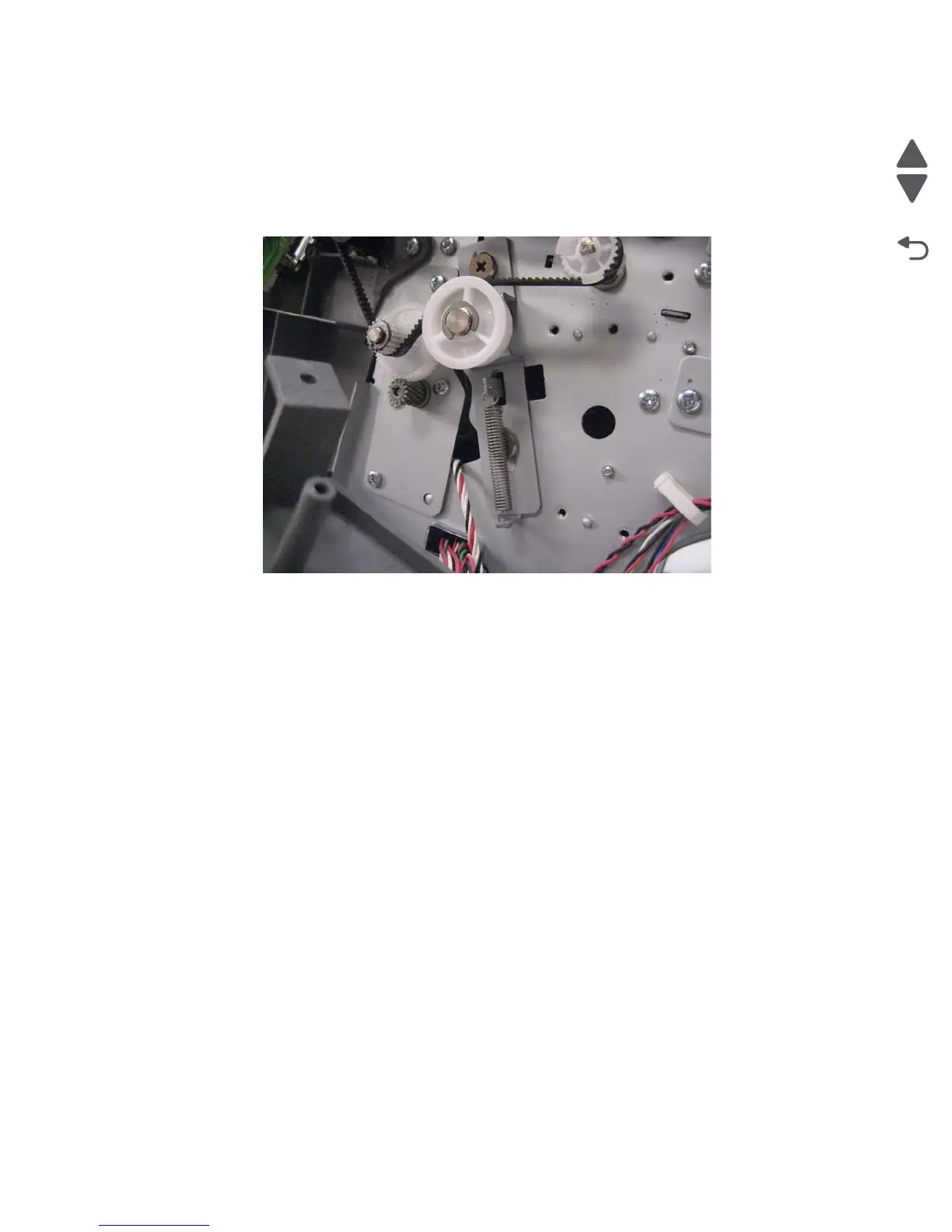

HTU drive gear spring removal

1. Remove all output options from the printer.

2. Remove the controller card. See “HTU controller card removal” on page 4-289.

3. Use a spring hook to remove the spring.
