Lexmark C792 series - MPF Drive Assembly Removal

To Next Page

To Previous Page

4-106 Service Manual

5062

Go Back

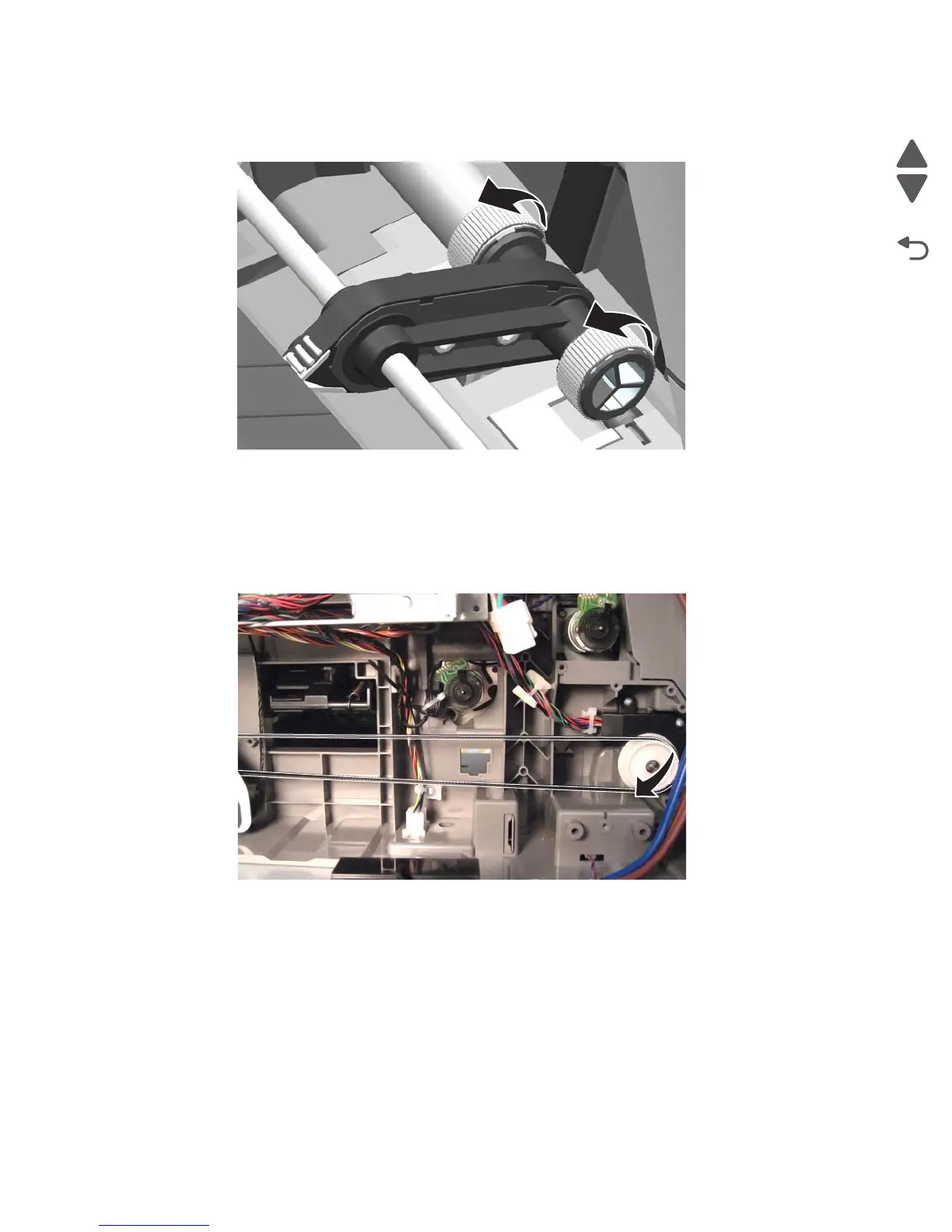

• Verify the rolls turn freely.

MPF drive assembly removal

See “Rear” on page 7-15 for the part number.

1. Remove the LVPS exit duct. See “LVPS exit duct removal” on page 4-89.

2. Slide the belt off the MPF redrive pulley.
