HTU punch motor removal

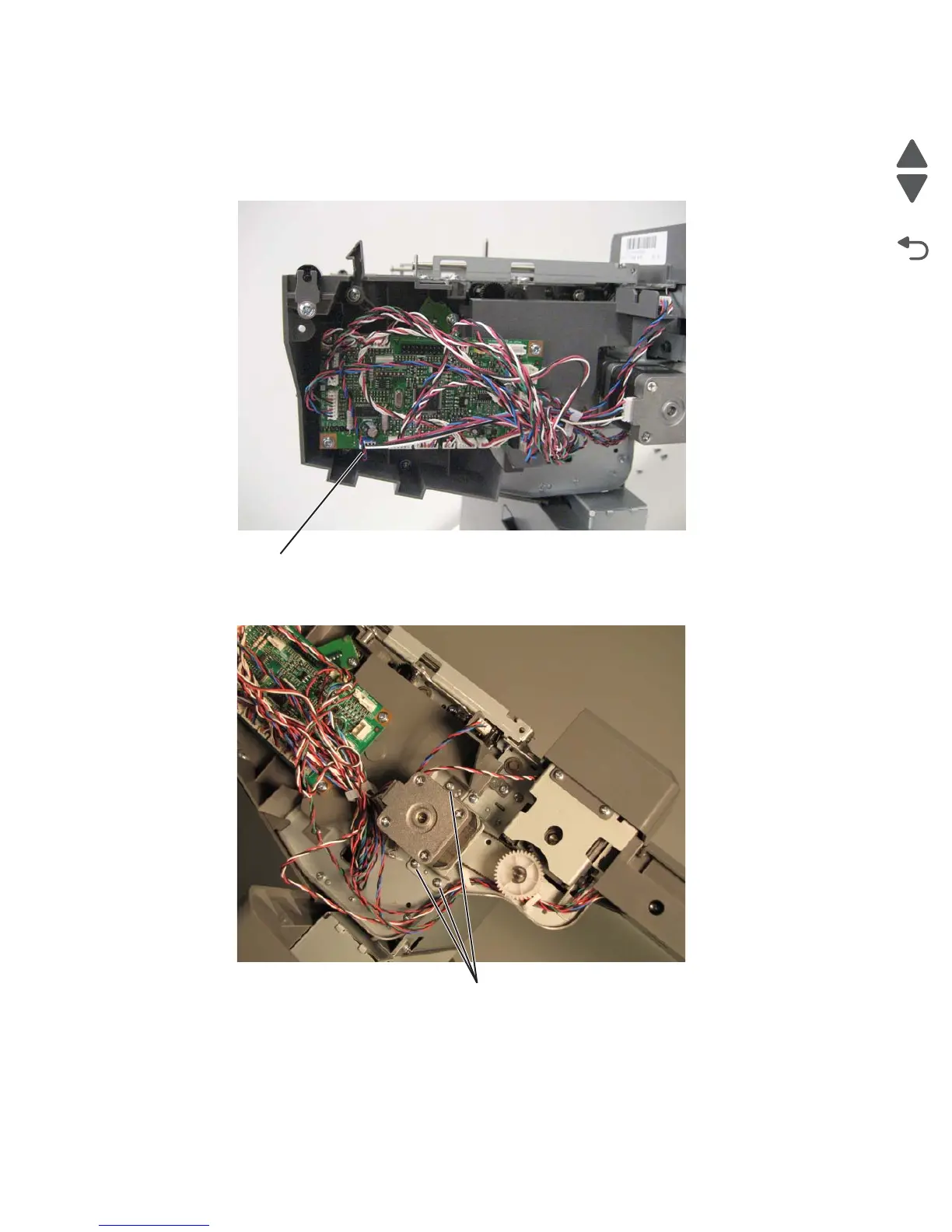

1. Remove the HTU rear standard bin cover. See “HTU rear standard bin cover removal” on page 4-312.
2. Disconnect the punch motor cable (A) from the HTU controller card.
3. Remove the three screws (B), and remove the motor with the bracket.
A
B (3014523)
