Pad removal
See “Left and rear covers” on page 7-5 for the part number.
1. Remove the standard media tray. See “Standard media tray removal” on page 4-150.
2. Remove the waste toner container. See “Waste toner container removal” on page 4-158.
3. Remove the print cartridges.
4. Shut the front access door.
5. Gently lay the printer on its back.

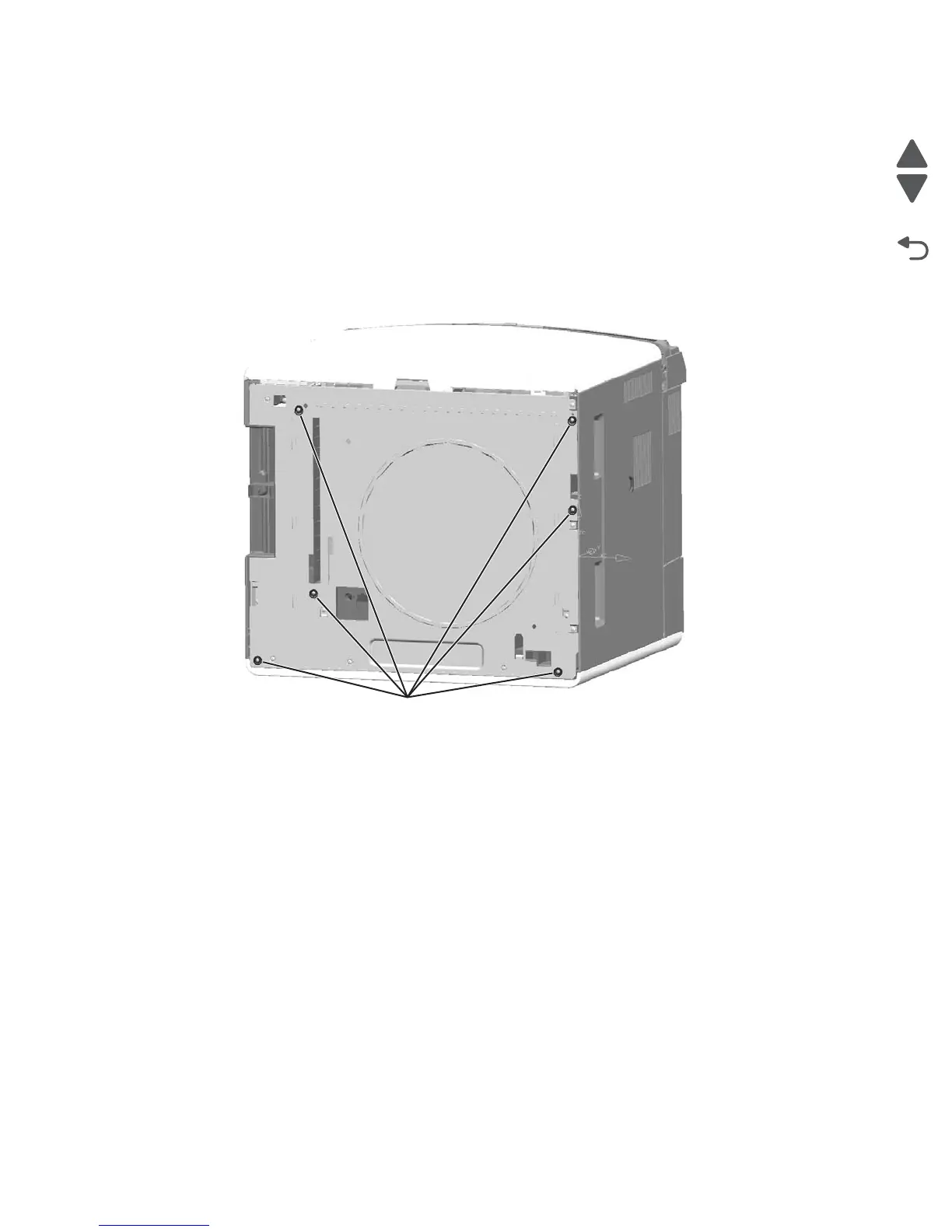

6. Remove the screw (A) from the pad you want to remove.
