5-bin mailbox output bin deflector removal
See“5-bin mailbox assembly (interior)” on page 7-37 for the part number.
1. Remove the mailbox option from the printer.
2. Remove the mailbox access door roller assembly.
3. Remove the rear cover. See “5-bin mailbox rear cover removal” on page 4-249.
4. Remove the mailbox feed motor with plate assembly. See “5-bin mailbox feed motor with plate
removal” on page 4-241.

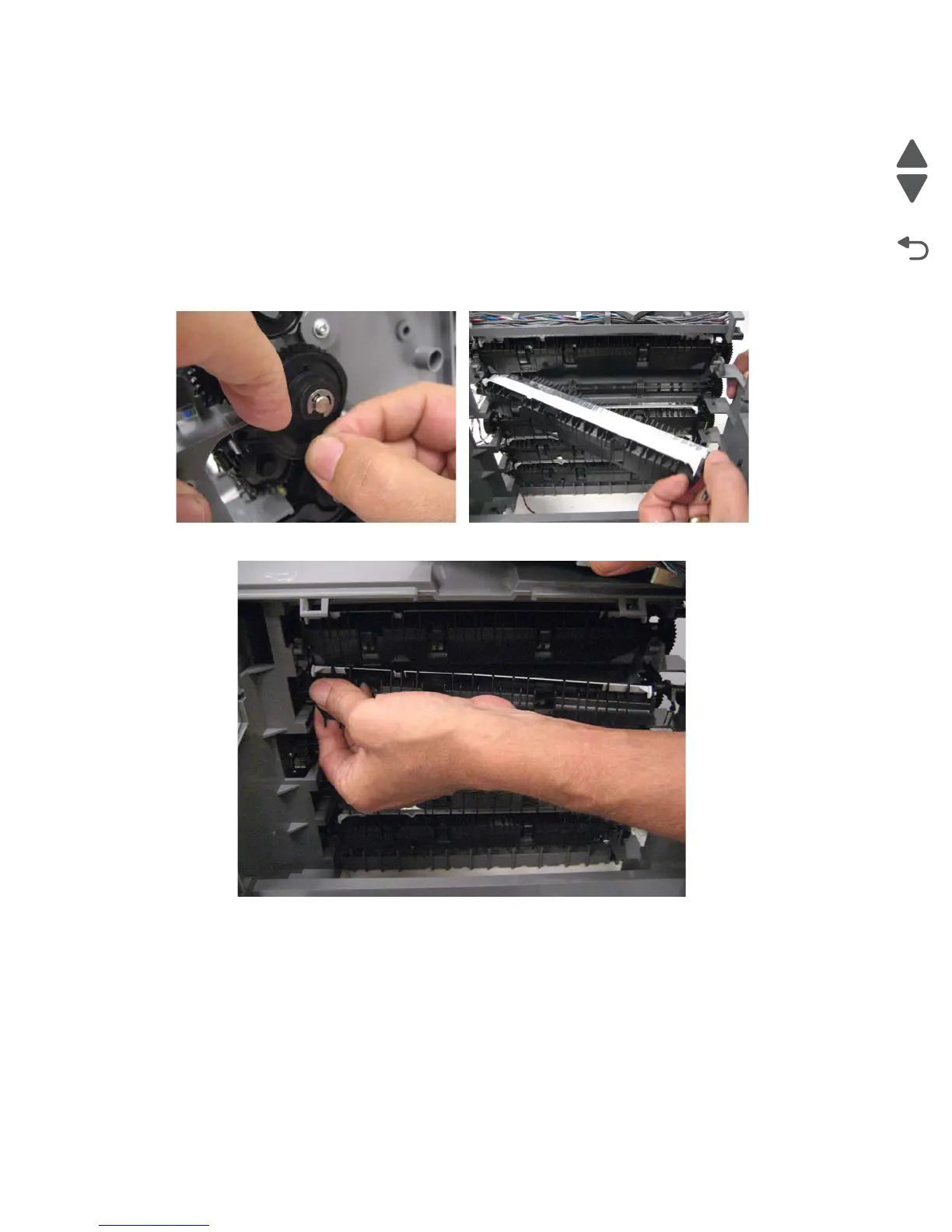

5. If you are removing deflectors 1 through 4, then remove the deflector spring.
6. Rotate the right side of the deflector out.
7. Pull the left side out.
