Finisher or stacker controller card assembly removal
See “Finisher/High-capacity output stacker assembly” on page 7-25 for the part number.
1. Remove the option from the printer.
2. Remove the front cover. See “Finisher or stacker front cover removal” on page 4-260.
3. Disconnect all cables from the controller card.

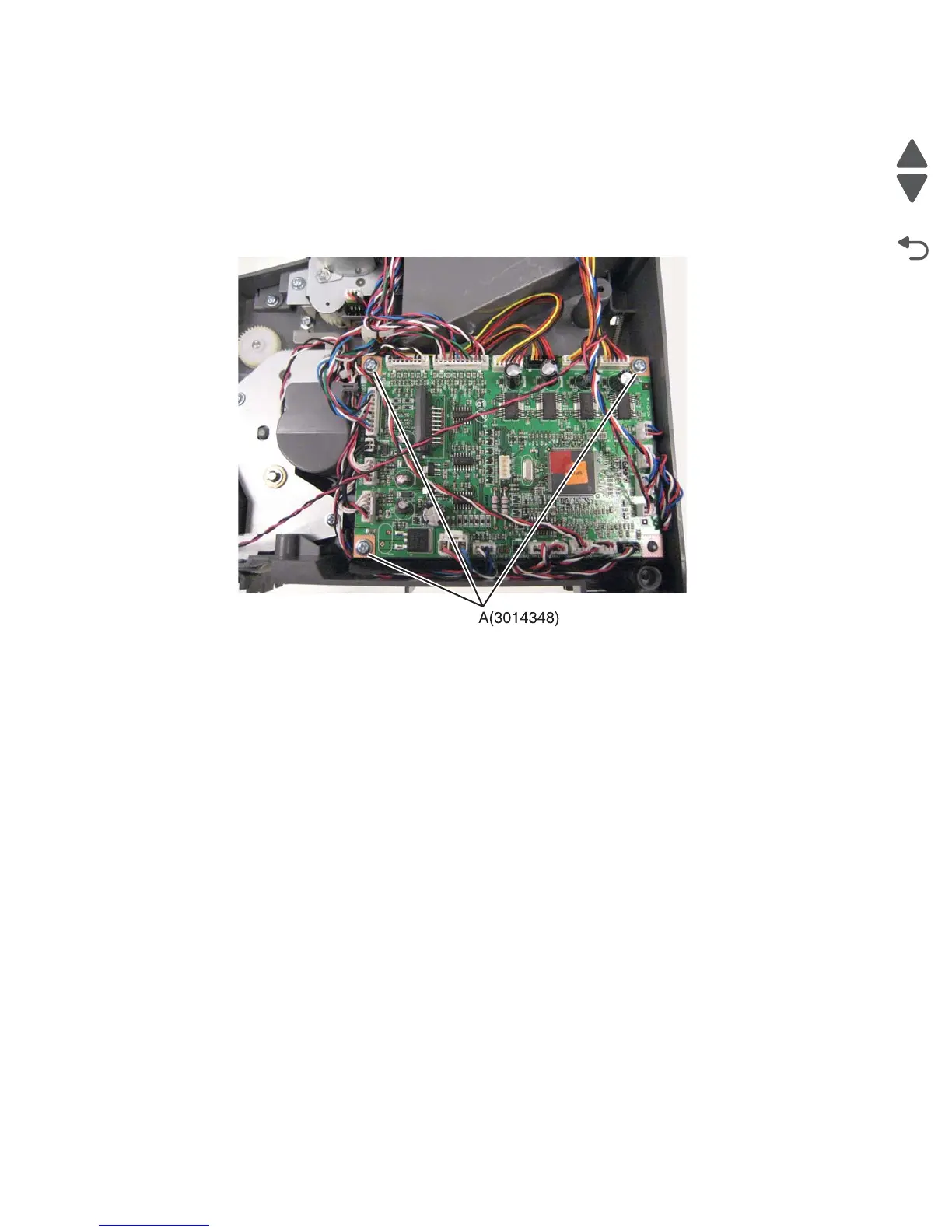

4. Remove the three screws (A) securing the stapler/stacker controller card assembly.
5. Remove the stapler/stacker controller card assembly.
Installation note: Be sure to place the black plastic under the controller card before you put the card in place.
