4-56 Service Manual
5062
EP drive assembly removal
See “Rear” on page 7-15 for the part number.
1. Remove the system board cage with board. See “System board cage with board removal” on
page 4-155.

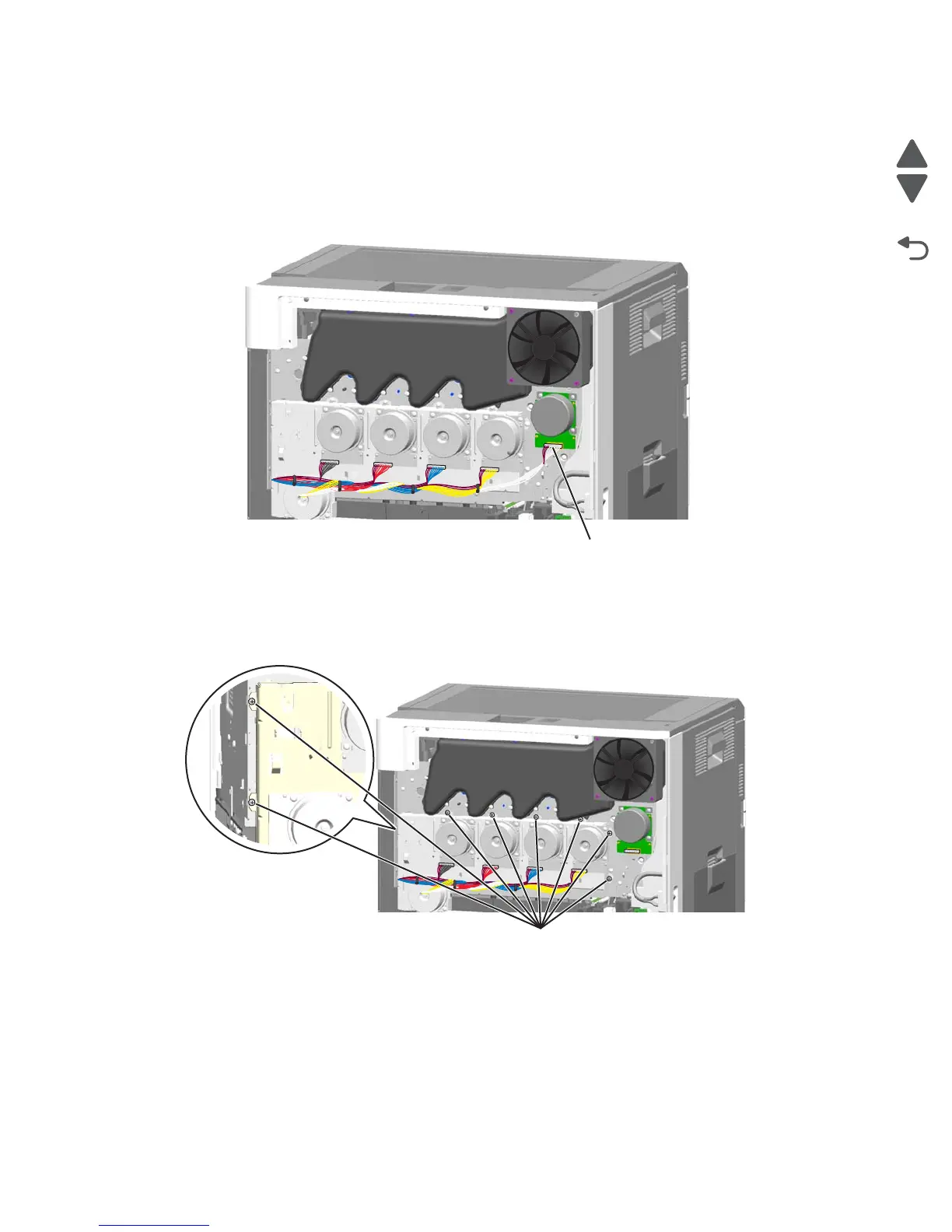

2. Disconnect the cable (A) from the fuser motor.
Note: If you are replacing the cables, remove the toroids from the old cables and use cable ties to attach
the toroids to the new cables.
3. Remove the eight screws (B).
