Repair information 4-259
5062
Finisher or stacker feed roller removal
See “Finisher/High-capacity output stacker assembly” on page 7-25 for the part number.
1. Remove the option from the printer.
2. Open the option left access door.

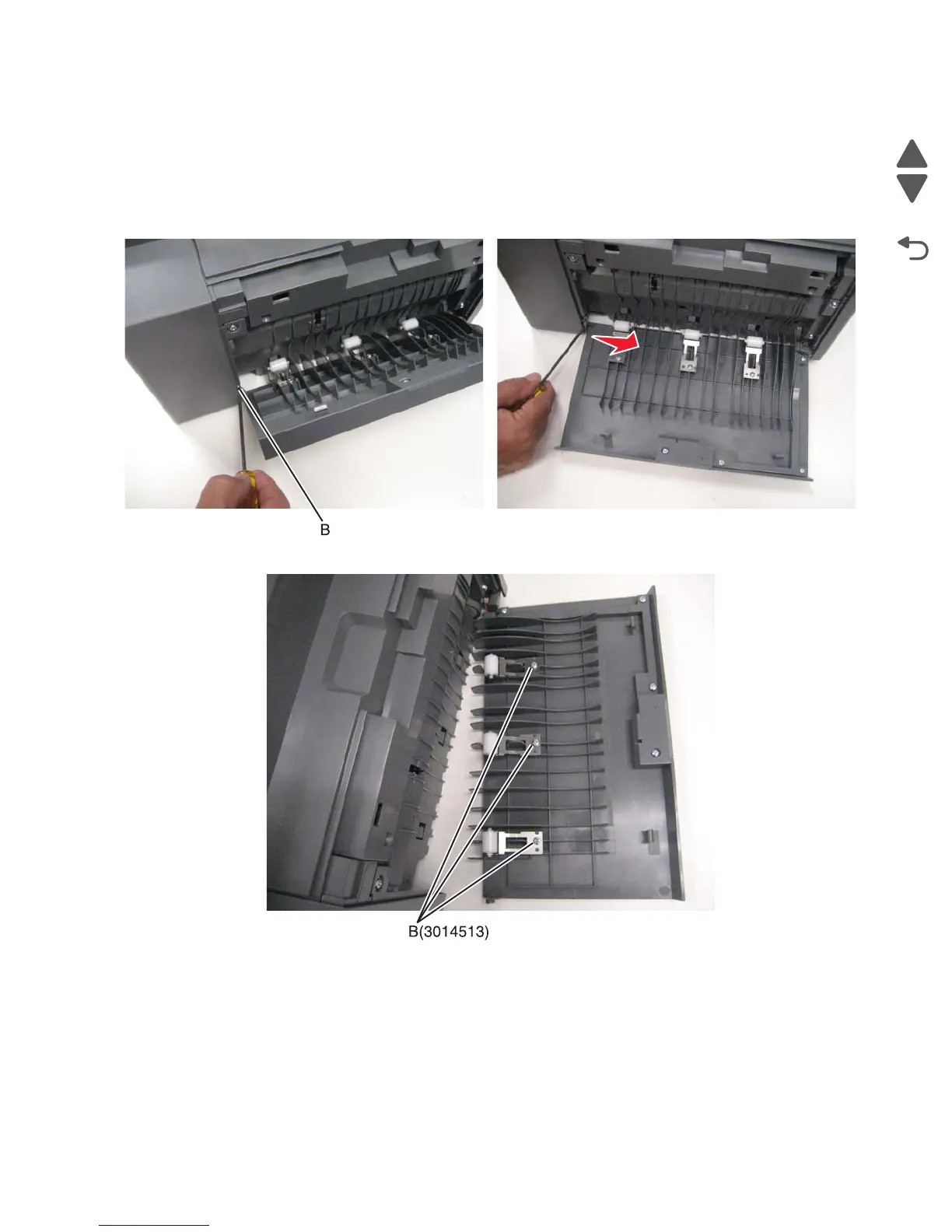

3. Using a screwdriver, force the rear hinge (A) out of the slot by pushing the door to the front.
4. Remove the screw (B) to remove the roller you are replacing.
