Lexmark C792 series - HTU Output Option Removal

To Next Page

To Previous Page

4-306 Service Manual

5062

Go Back

HTU output option removal

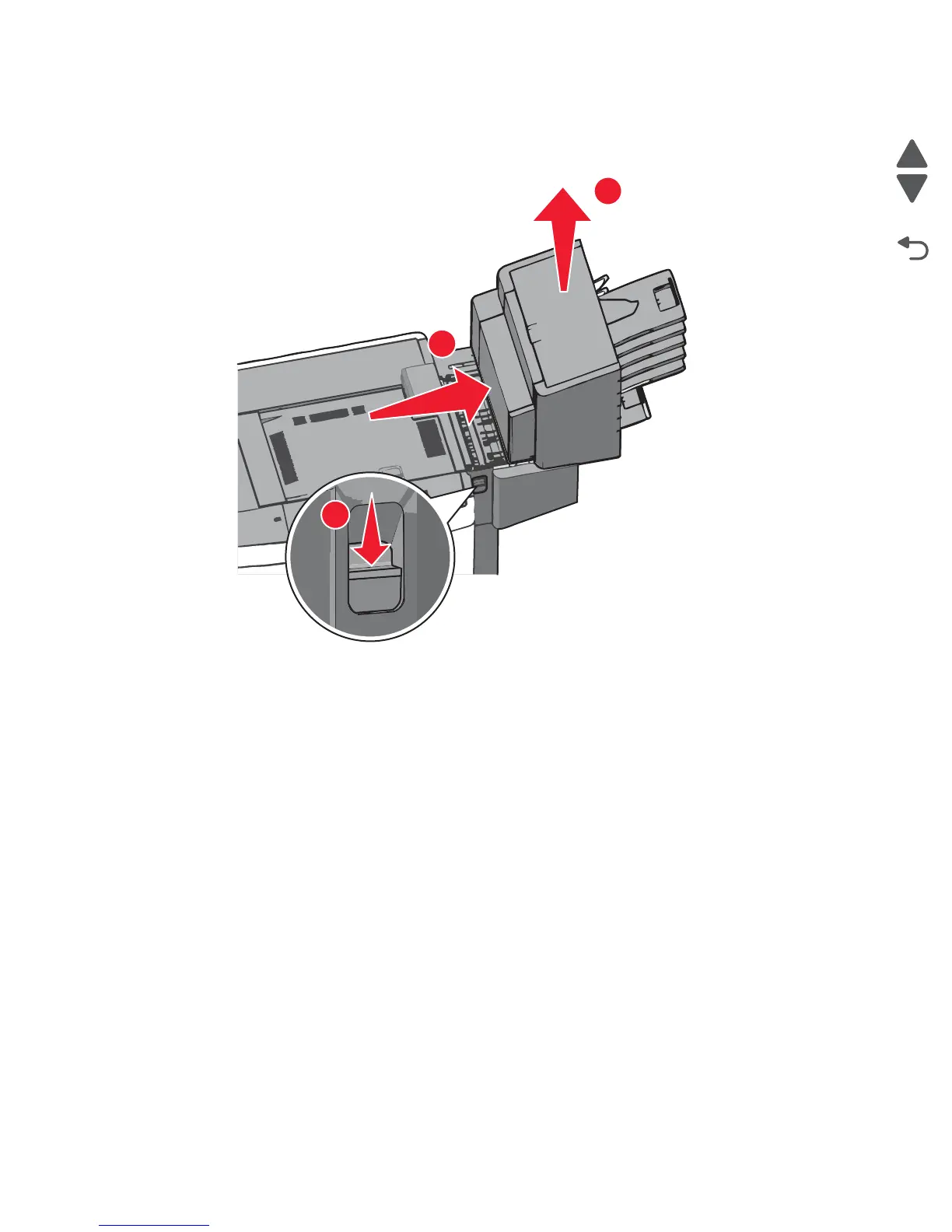

1. Press the release lever, slide the top option to the right, and lift the top option off.
