Lexmark C792 series - Rear Cover Removal

4-20 Service Manual
5062
Go Back
Previous
Next
Rear cover removal
See “Left and rear covers” on page 7-5 for the part number.
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-22.
2. Remove the system board shield. See “System board shield removal” on page 4-27.

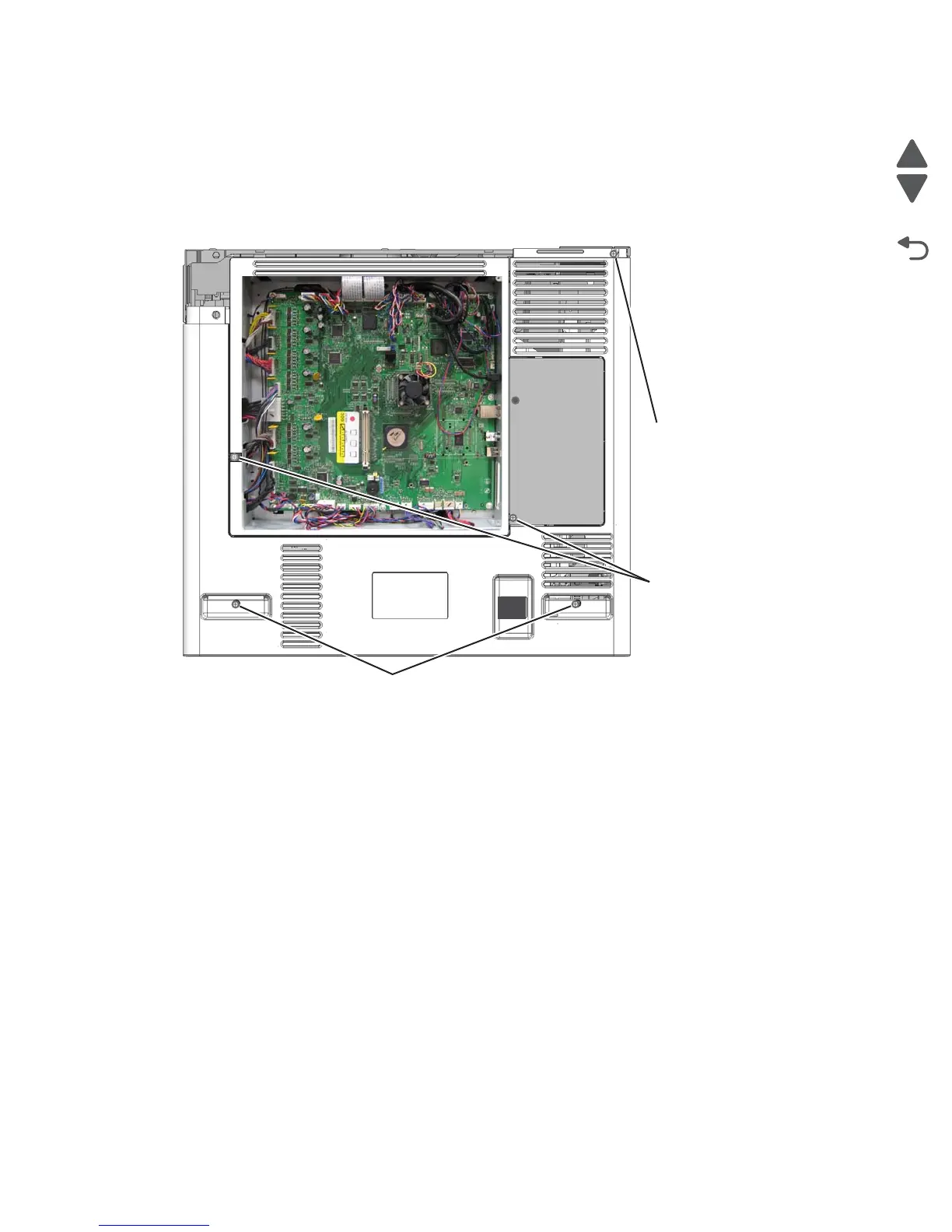

3. Remove the three screws (A) and the two screws (B).
A (88A0323)
B (88A0212)
A (88A0323)
