Lexmark C792 series

To Next Page

To Previous Page

Repair information 4-21

5062

Go Back

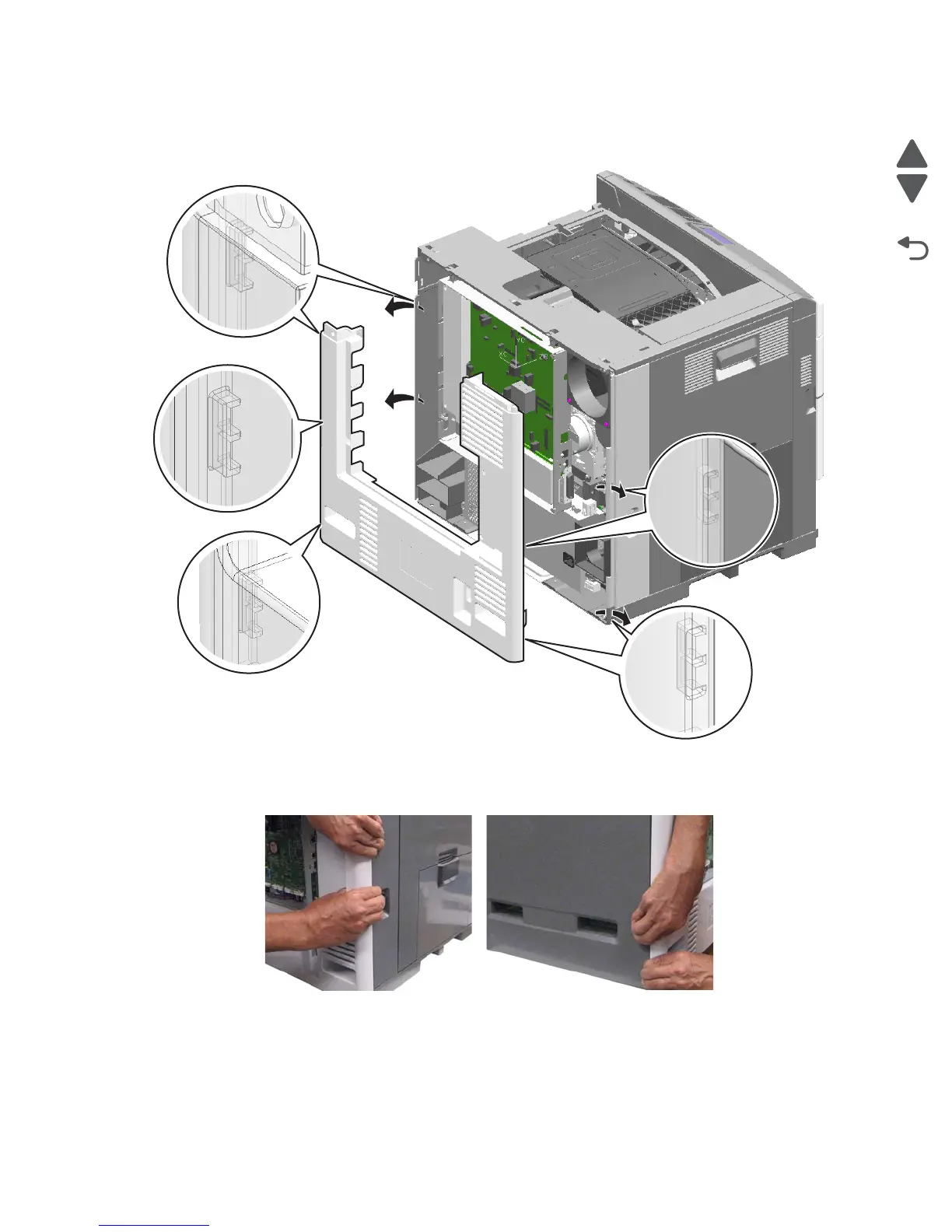

4. Push in the indicated areas of the right side and left side covers, and pull out the rear cover tabs.

Note: On the right cover side, start with the top tab. On the left cover side, start with the bottom tab.

5. Remove the rear cover.
