Repair information 4-199
5062

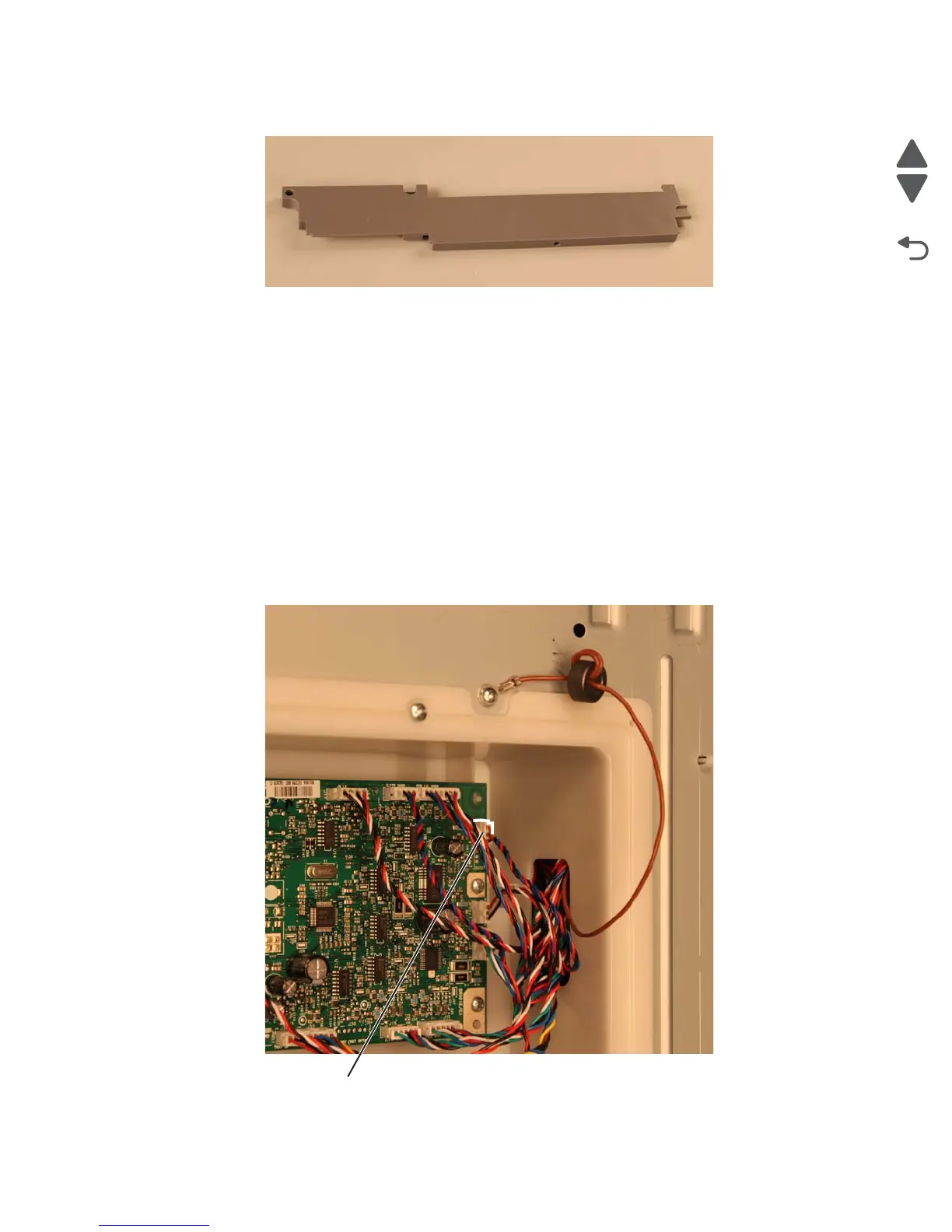

4. Remove the jam clearance top cover.
2000-sheet high-capacity feeder jam door clearance sensor removal
See“Optional 2000-sheet high-capacity feeder” on page 7-23 for the part number.
1. Remove the media tray assembly. See “2000-sheet high-capacity feeder media tray assembly
removal” on page 4-215.
2. Remove the jam clearance top cover. See “2000-sheet high-capacity feeder jam clearance top cover
removal” on page 4-198.
3. Remove the rear cover. See “2000-sheet high-capacity feeder rear cover removal” on page 4-228.
4. Remove the right side cover. See “2000-sheet high-capacity feeder right side cover removal” on
page 4-231.
5. Remove the pick assembly. See “2000-sheet high-capacity feeder pick assembly removal” on
page 4-218.
6. Remove the drive assembly. See “2000-sheet high-capacity feeder drive assembly removal” on
page 4-186.
7. Disconnect the jam clearance cover connector (A) from the controller card assembly.
