Repair information 4-201

5062

Go Back

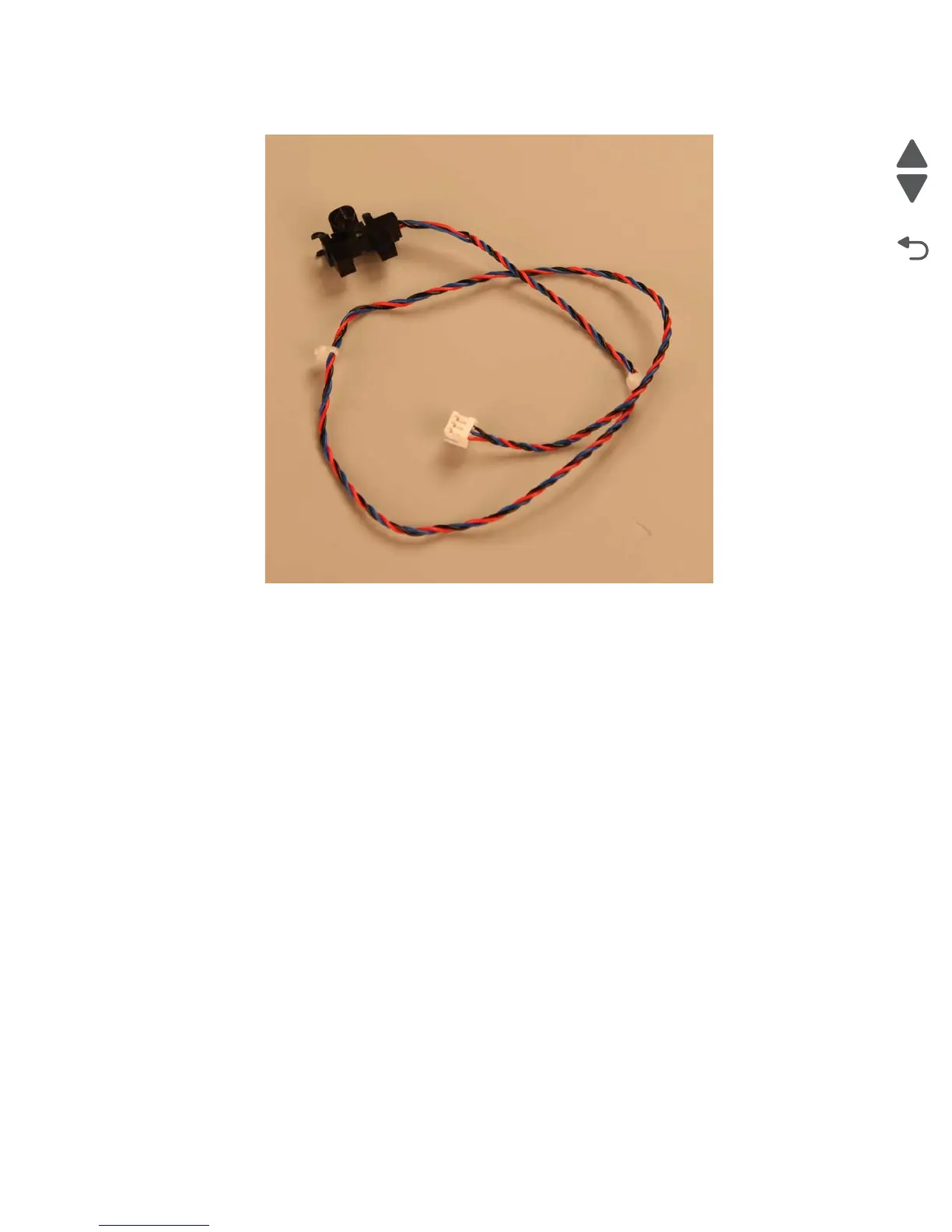

10. Remove the jam clearance cover sensor.

2000-sheet high-capacity feeder LED bracket removal

1. Remove the rear cover. See “2000-sheet high-capacity feeder rear cover removal” on page 4-228.

2. Remove the left side cover. See “2000-sheet high-capacity feeder left side cover removal” on

page 4-204.

3. Remove the right side cover. See “2000-sheet high-capacity feeder right side cover removal” on

page 4-231.

4. Remove the pick assembly. See “2000-sheet high-capacity feeder pick assembly removal” on

page 4-218.
