Lexmark C792 series

To Next Page

To Previous Page

Connector locations 5-17

5062

Go Back

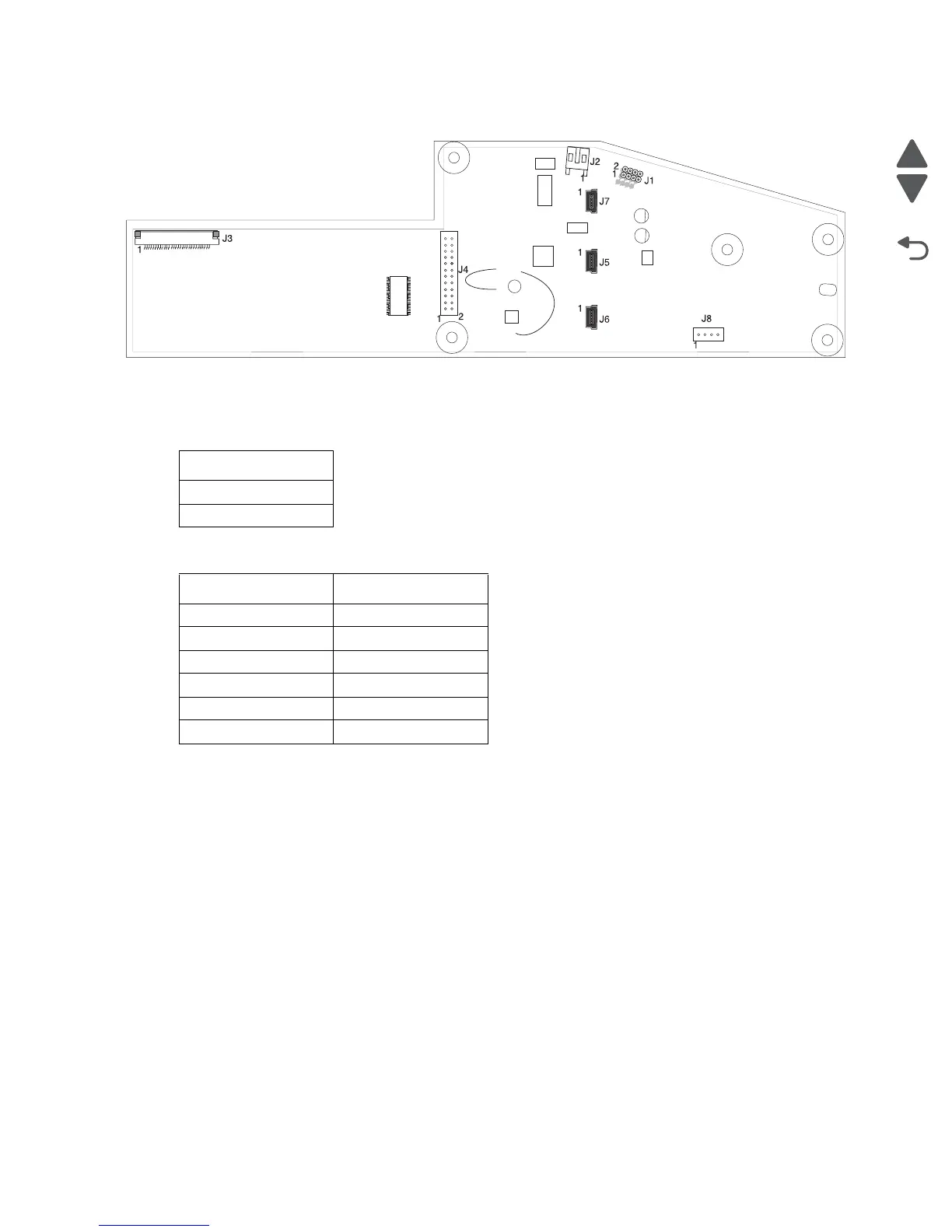

UICC card

UICC card connectors with no cables attached

Connector

UICC card connectors

Connector Connects to

J2 Speaker

J3 Display

J4 System board

J5 USB to USB port

J6 USB to card reader

J7 USB to system board
