Repair information 4-235

5062

Go Back

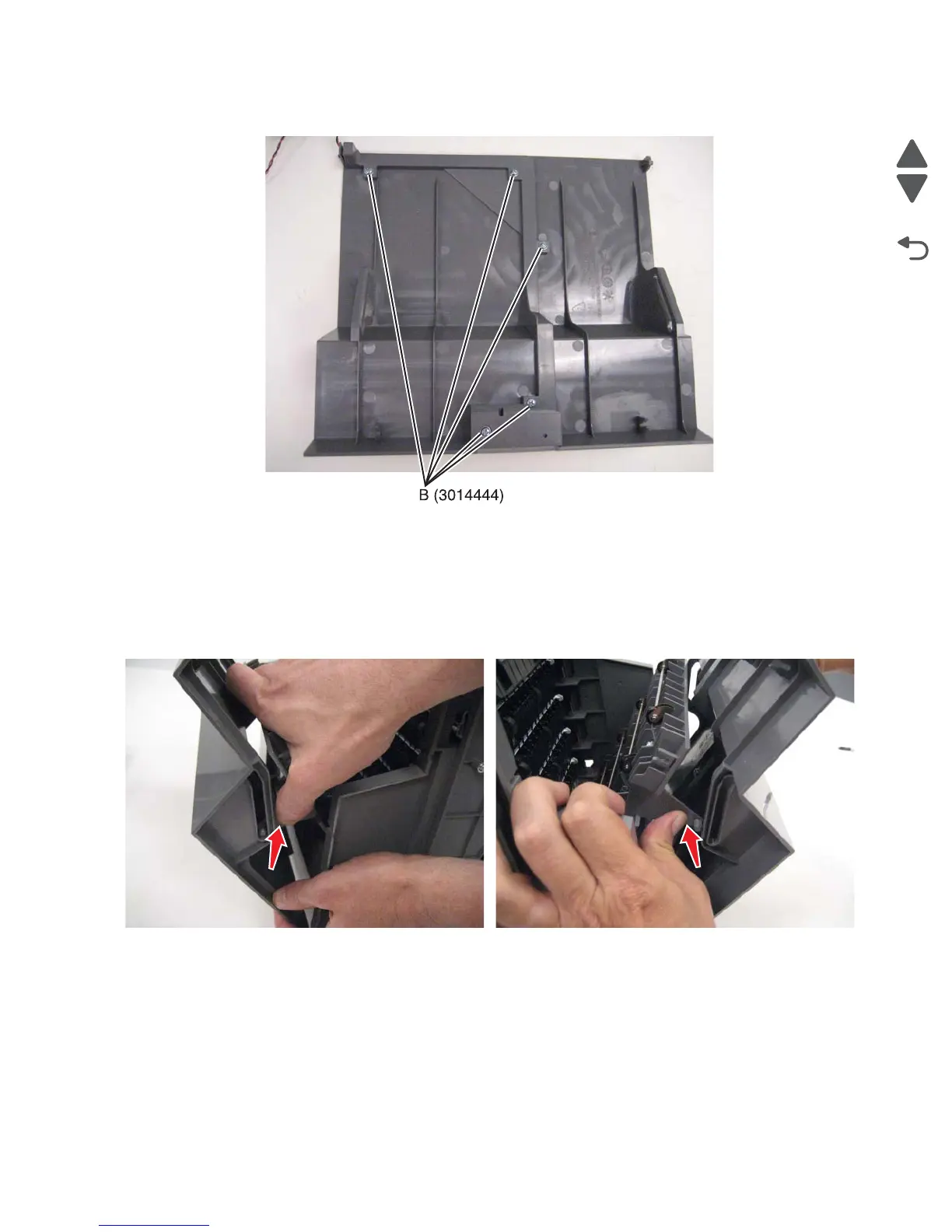

5. Remove five screws (B) to remove the beacon LED and cover.

5-bin mailbox backup roll plate assembly removal

See“5-bin mailbox assembly (interior)” on page 7-37 for the part number.

1. Remove the mailbox from the printer.

2. Remove the mailbox rear cover. See “5-bin mailbox rear cover removal” on page 4-249.

3. Open the left access door, and press in to release the support pins from each side of the door.
