4-238 Service Manual
5062

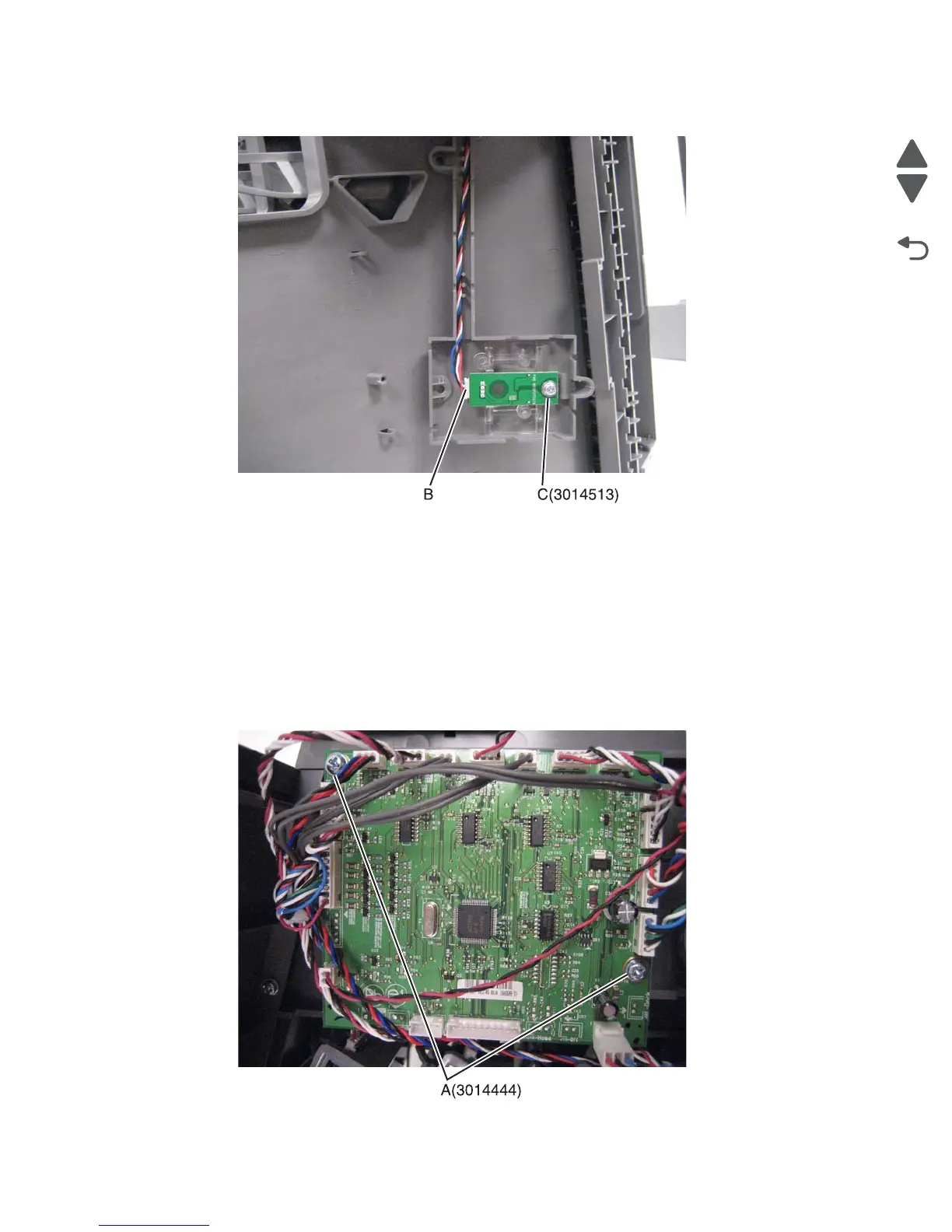

3. Remove the screw (C), and then disconnect the cable (B) from the card to remove the beacon.
Note: Observe the cable routing for reinstallation. To replace the cable, remove the rear cover and
disconnect the cable from the printer circuit board. See “5-bin mailbox rear cover removal” on
page 4-249.
5-bin mailbox controller card removal
See“5-bin mailbox assembly (interior)” on page 7-37 for the part number.
1. Remove the mailbox from the printer.
2. Remove the rear cover. See “5-bin mailbox rear cover removal” on page 4-249.
3. Disconnect all cables from the board.
4. Remove the two screws (A) to remove the board.
