149.xx—Paper path redrive motor error service check
4
Replace the staging paper path reference
edge assembly. See “Staging paper path
reference edge assembly removal” on
page 4-142.
Dose the error reoccur?
Replace the system board.
See “System board
removal” on page 4-151.
Problem solved.
Step Questions / actions Yes No

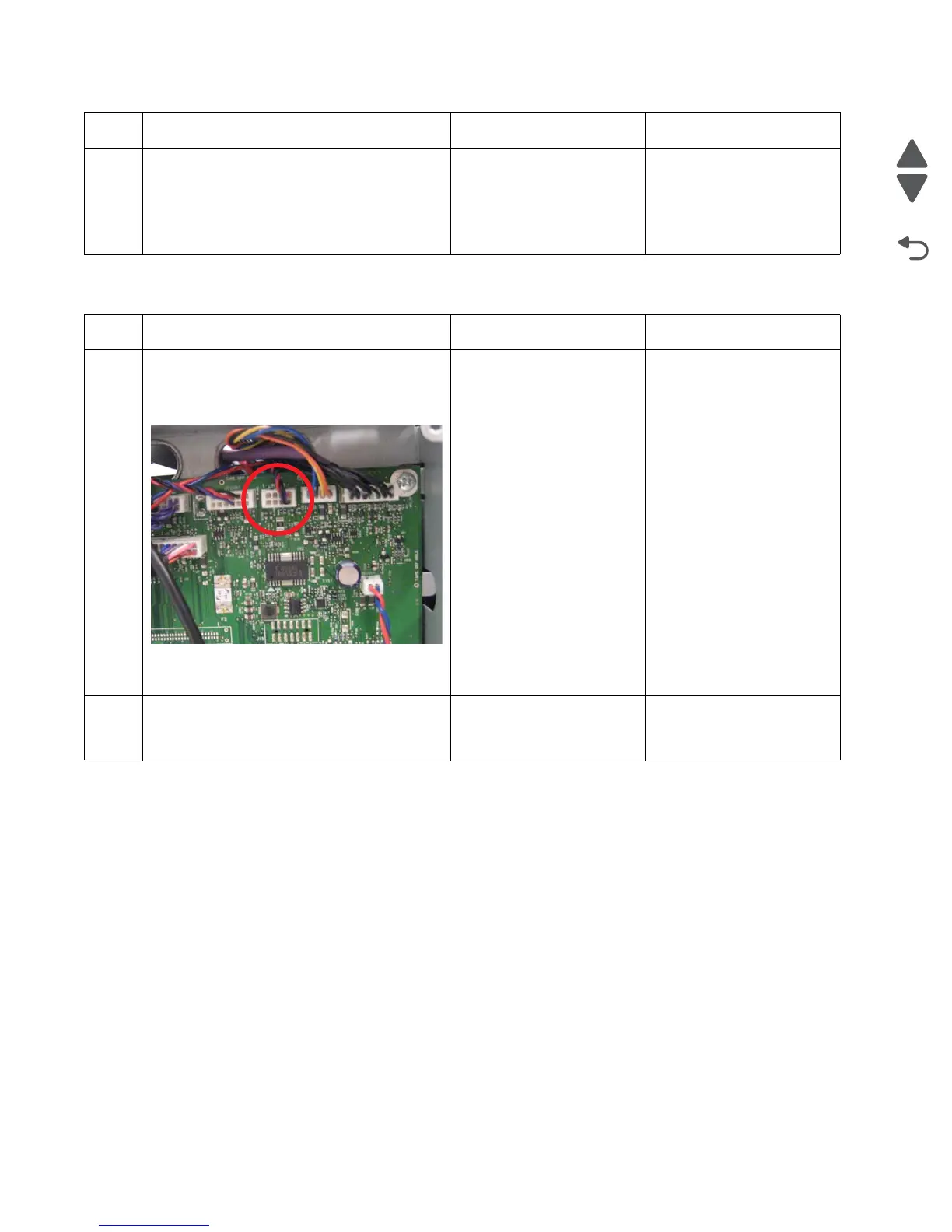

1 Turn the printer off, and open the system
board shield. Check the cable in connector
JRDR1 for proper connection to the system
board.
Is the cable properly connected?
Go to step 2. Reseat the cable.
2
Replace the redrive motor. See “Redrive
motor removal” on page 4-135.
Does the error reoccur?
Replace the system board.
See “System board
removal” on page 4-151.
Problem solved.
Step Questions / actions Yes No
