Lexmark C792 series - Bin-Full Sensor Removal

To Next Page

To Previous Page

4-38 Service Manual

5062

Go Back

Bin-full sensor removal

See “Sensors parts packet, including” on page 7-7 for the part number.

1. Remove the top cover. See “Top cover removal” on page 4-30.

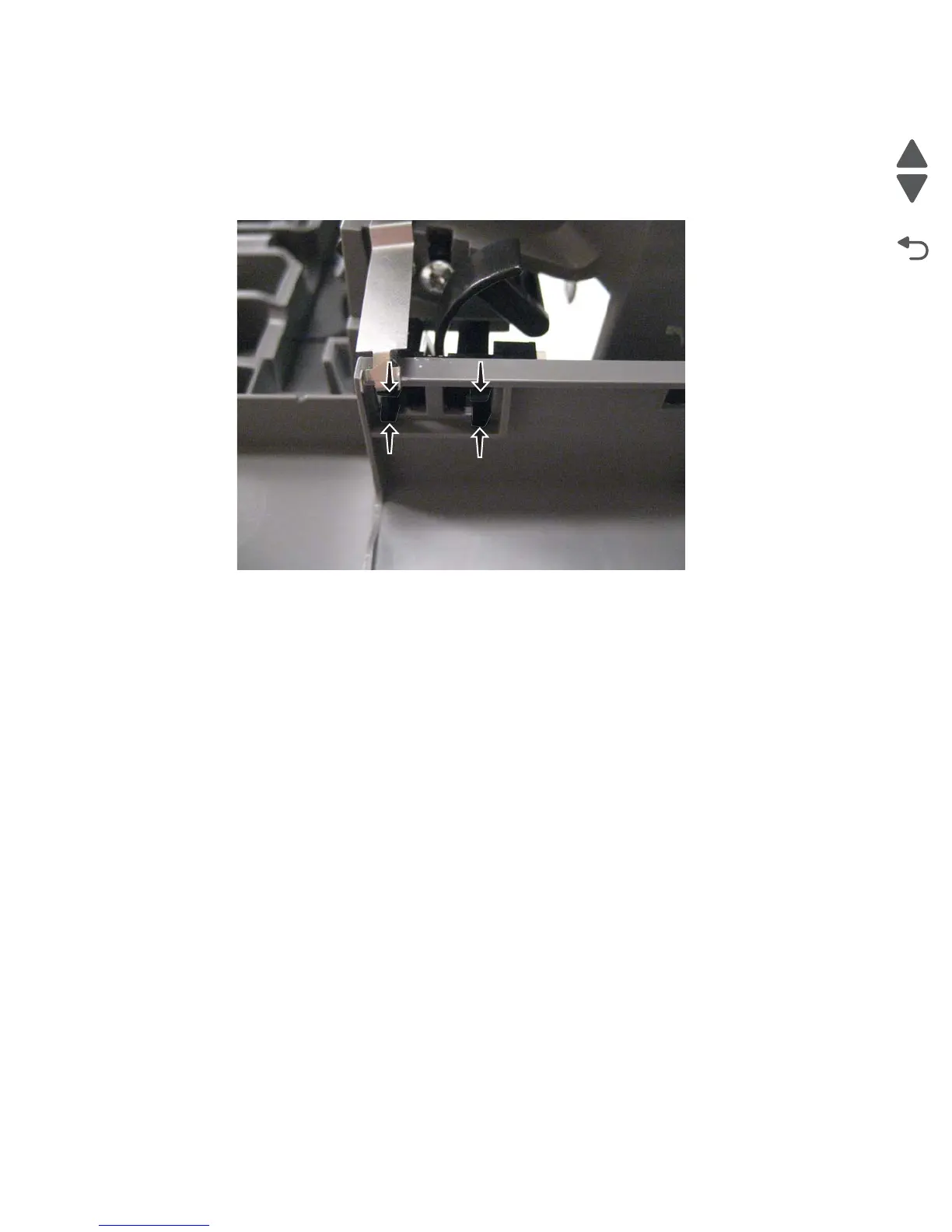

2. Press in the tabs to remove the sensor from under the top cover.
