4-104 Service Manual
5062
MPF pick rolls and special wear strip removal
See “Left and rear covers” on page 7-5 for the part number.
Always replace both pick rolls and the special wear strip at the same time.
1. Open the left access door.

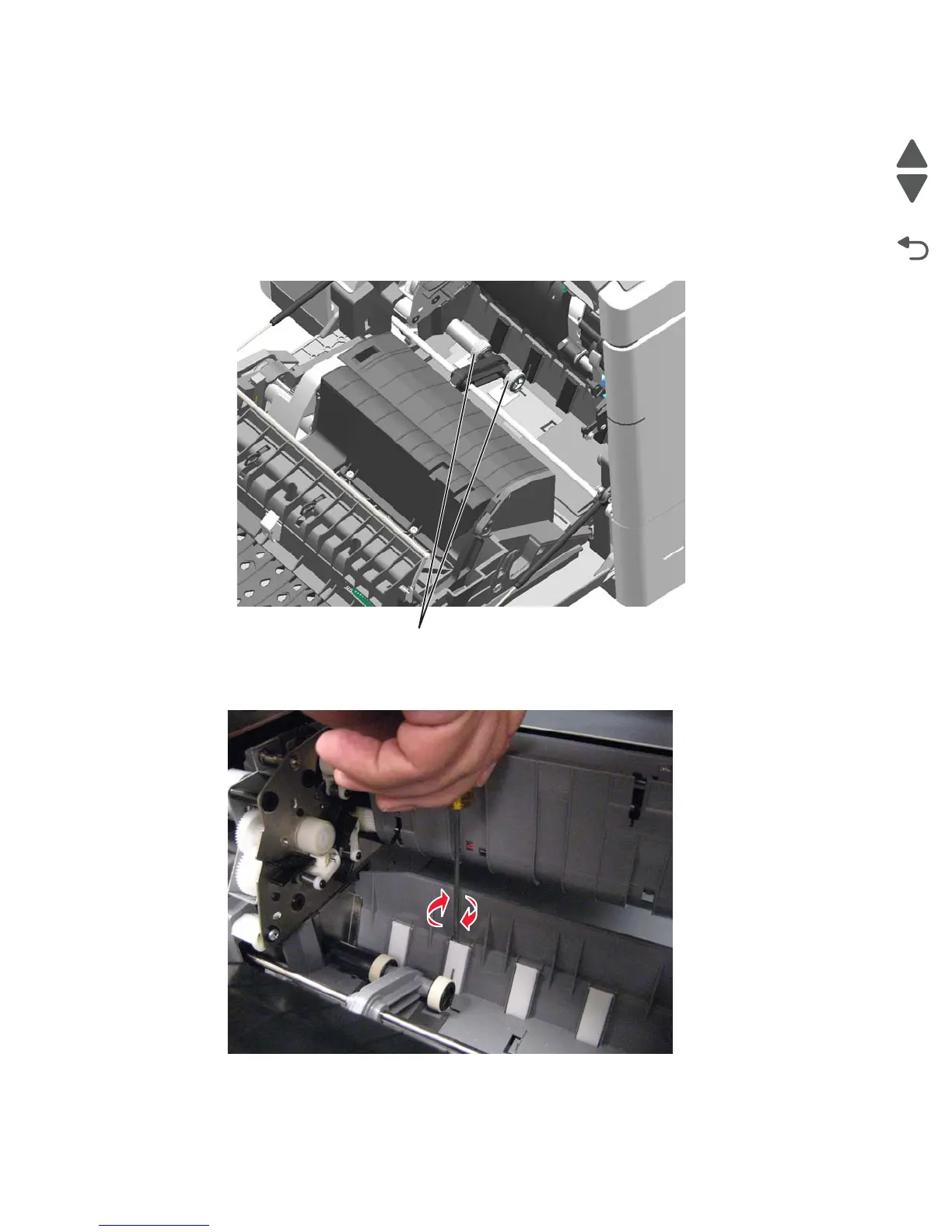

2. Remove the screw (A) in the top cover.Remove the rubber rolls (A) from the hubs. The hubs stay on the
printer.
3. Insert a flat-blade screwdriver behind the top of the special wear strip, and then twist the screwdriver to pop
out the strip.
