Lexmark C792 series

To Next Page

To Previous Page

Repair information 4-103

5062

Go Back

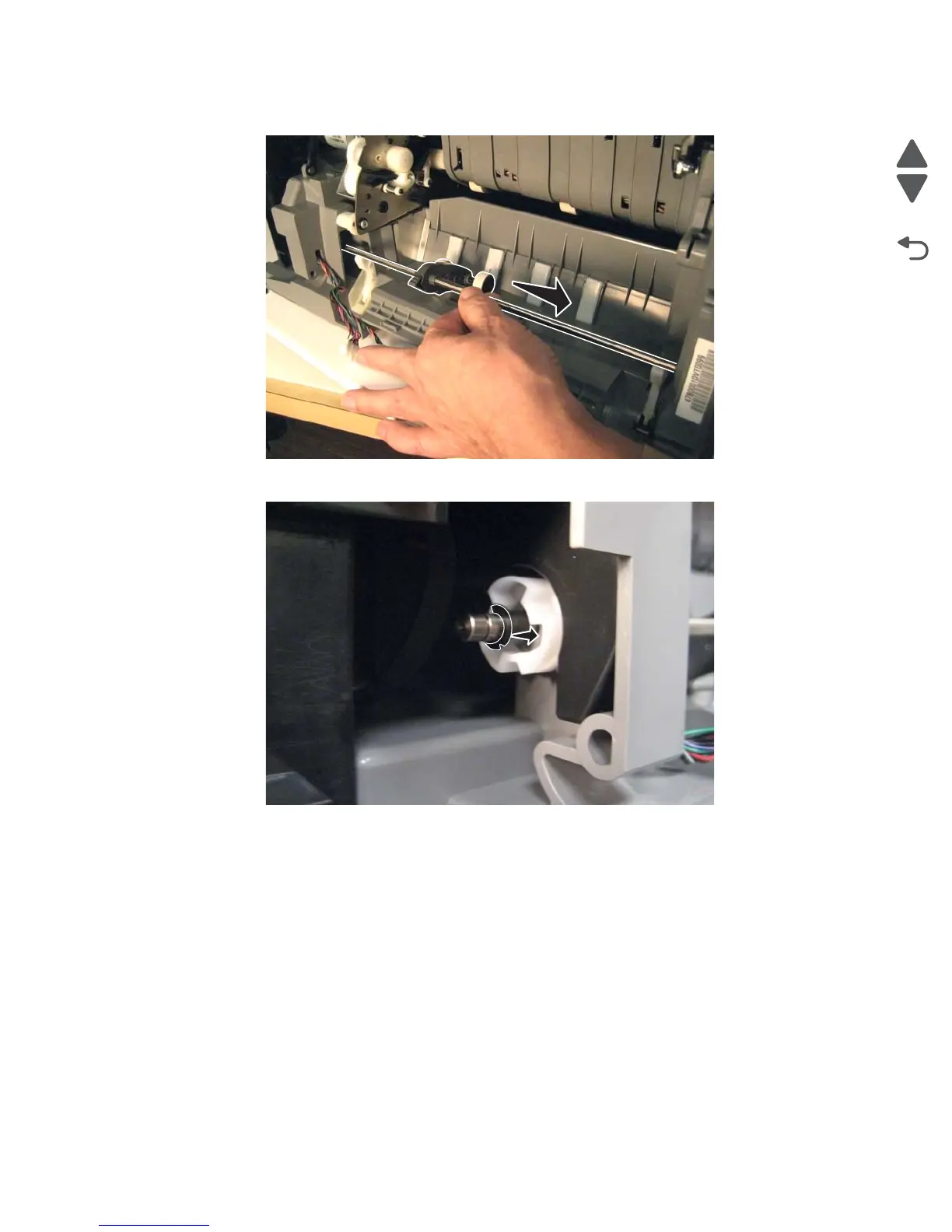

7. Slide the rod toward the front of the printer to free the rear side.

Installation note: Be sure to replace the thrust washer in the ratchet collar before installing the MPF drive pulley.
