Finisher or stacker sensor (finisher bin media present) removal

See “Finisher/High-capacity output stacker assembly” on page 7-25 for the part number.

1. Remove the option from the printer.

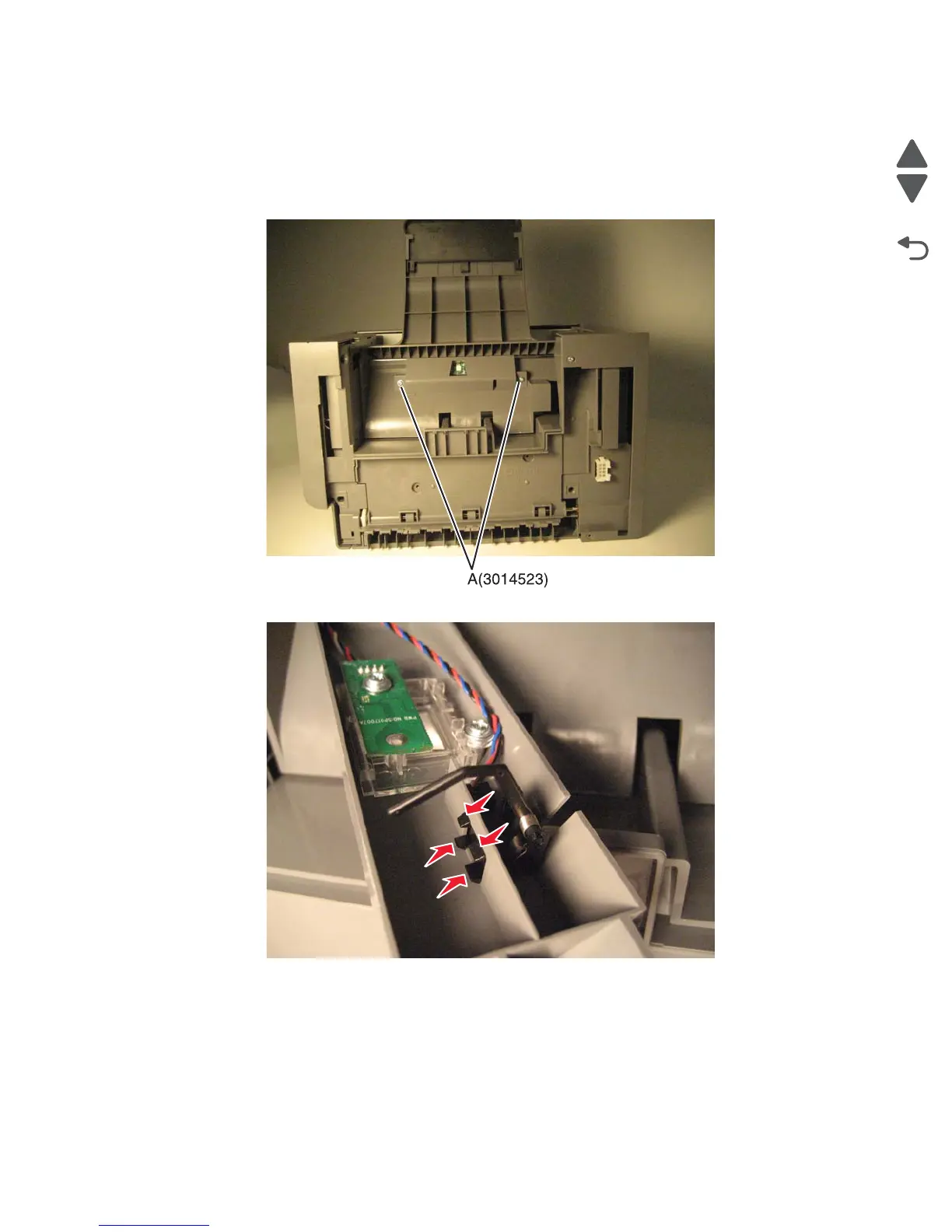

2. Remove two screws (A), and pull out the sensor cover.

3. Press the tabs to remove the sensor from the cover.

4. Disconnect the cable from the sensor to remove the sensor.
