HTU sensor (input) removal

1. Remove all output options from the printer.

2. Remove the HTU lower redrive guide. See “HTU lower redrive guide removal” on page 4-297.

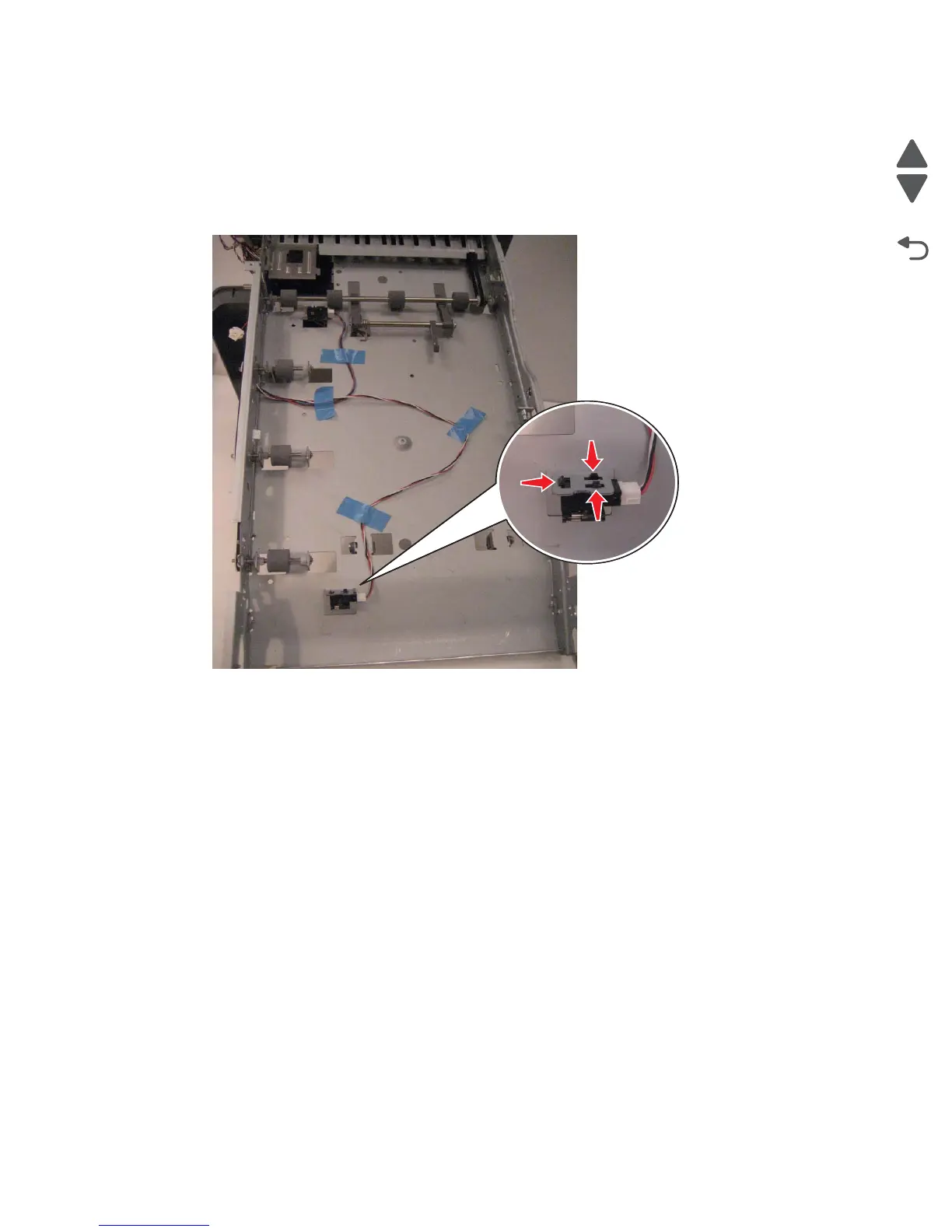

3. Press the tabs to release the sensor, and then disconnect the cable to remove the sensor.
