4-254 Service Manual

5062

Go Back

5-bin mailbox tray extension removal

See“5-bin mailbox assembly (covers)” on page 7-35 for the part number.

1. Pull out the extension until it stops.

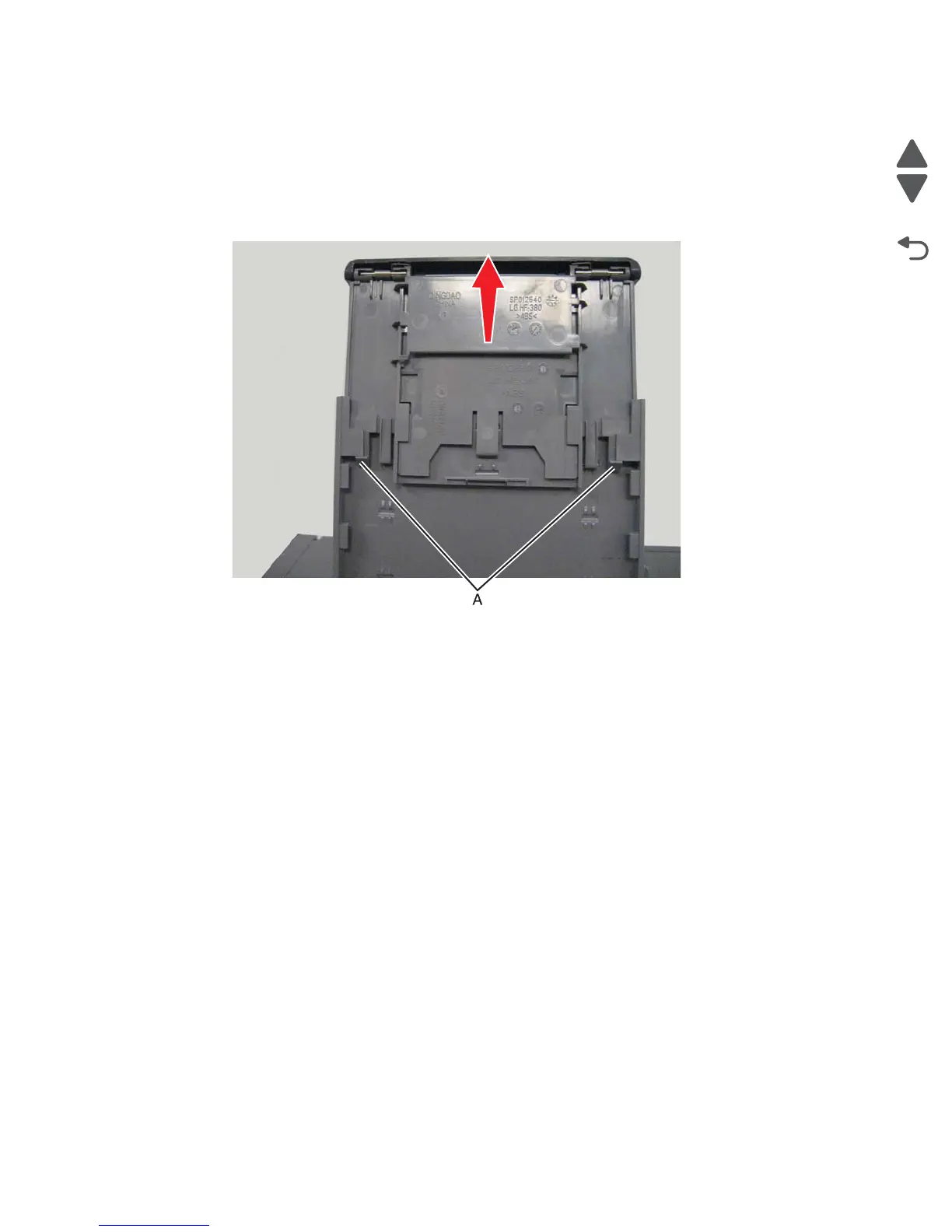

2. Push to release the two tabs (A) on the bottom of the extension, and then pull the extension out to remove

it.
