Repair information 4-305

5062

Go Back

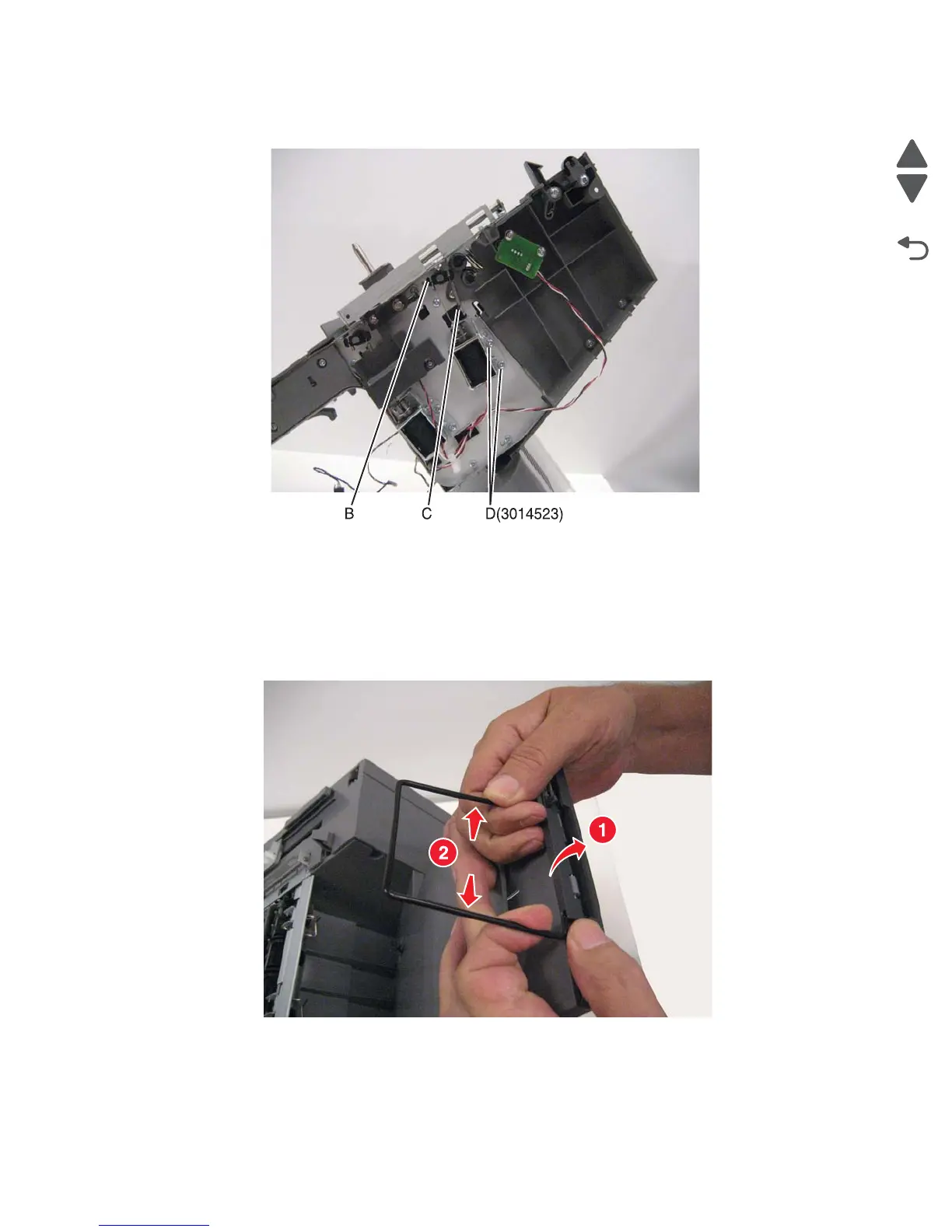

4. Disconnect the plunger (B) from stopper diverter and the spring (C) from the solenoid.

5. Remove the two screws (D) and remove the solenoid.

HTU output bin wire stop removal

1. Remove the output option from the HTU.

2. Rotate the extension cover down.

3. Pull out the sides of the stop to remove it.
