Lexmark C792 series - MPF Wear Strips Removal

Repair information 4-109
5062
Go Back
Previous
Next

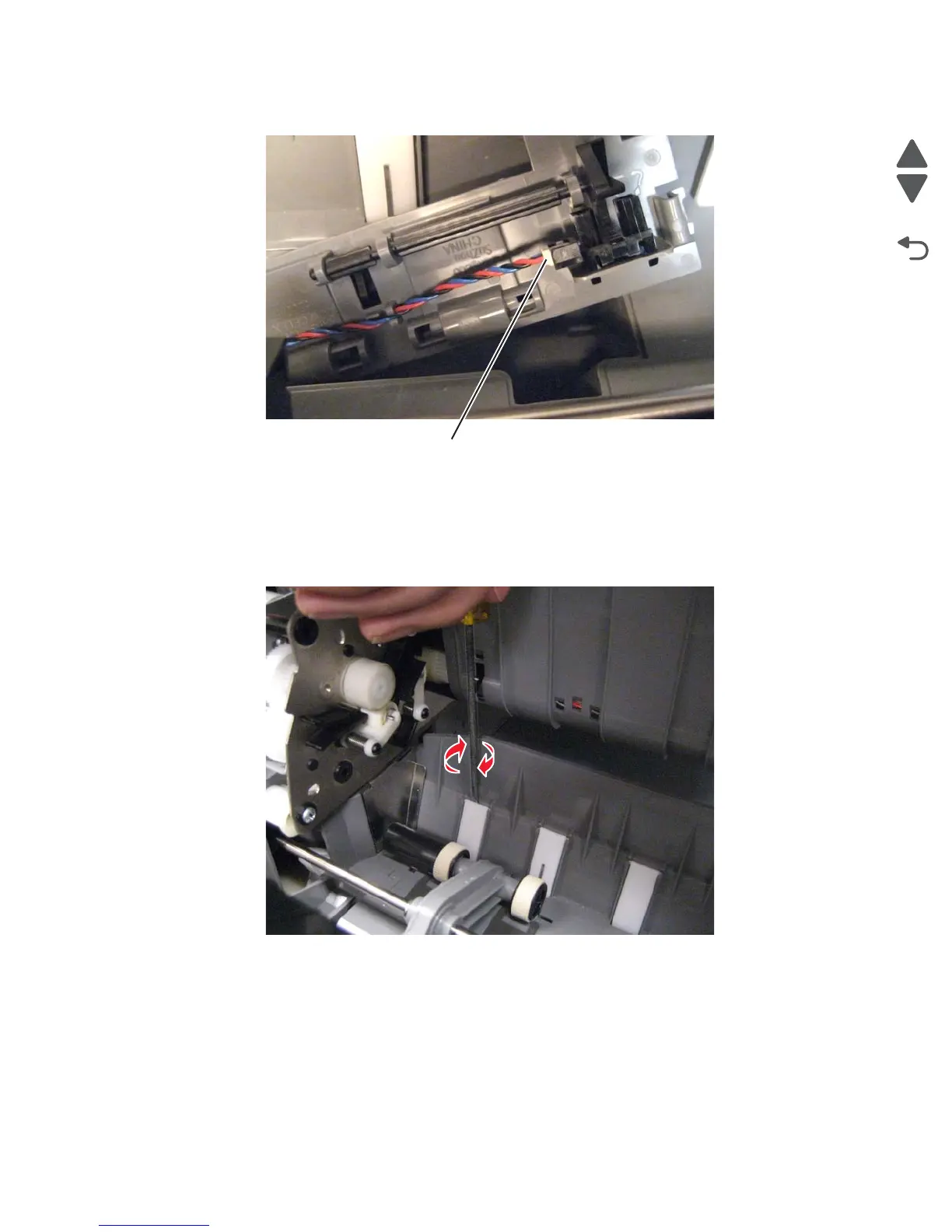

3. Disconnect the sensor cable (A), and remove the assembly.
MPF wear strips removal
See “Left and rear covers” on page 7-5 for the part numbers.
1. Open the left access door assembly.
2. Insert a flat-blade screwdriver behind the top of the strip, and then twist the screwdriver to pop out the strip.
A
