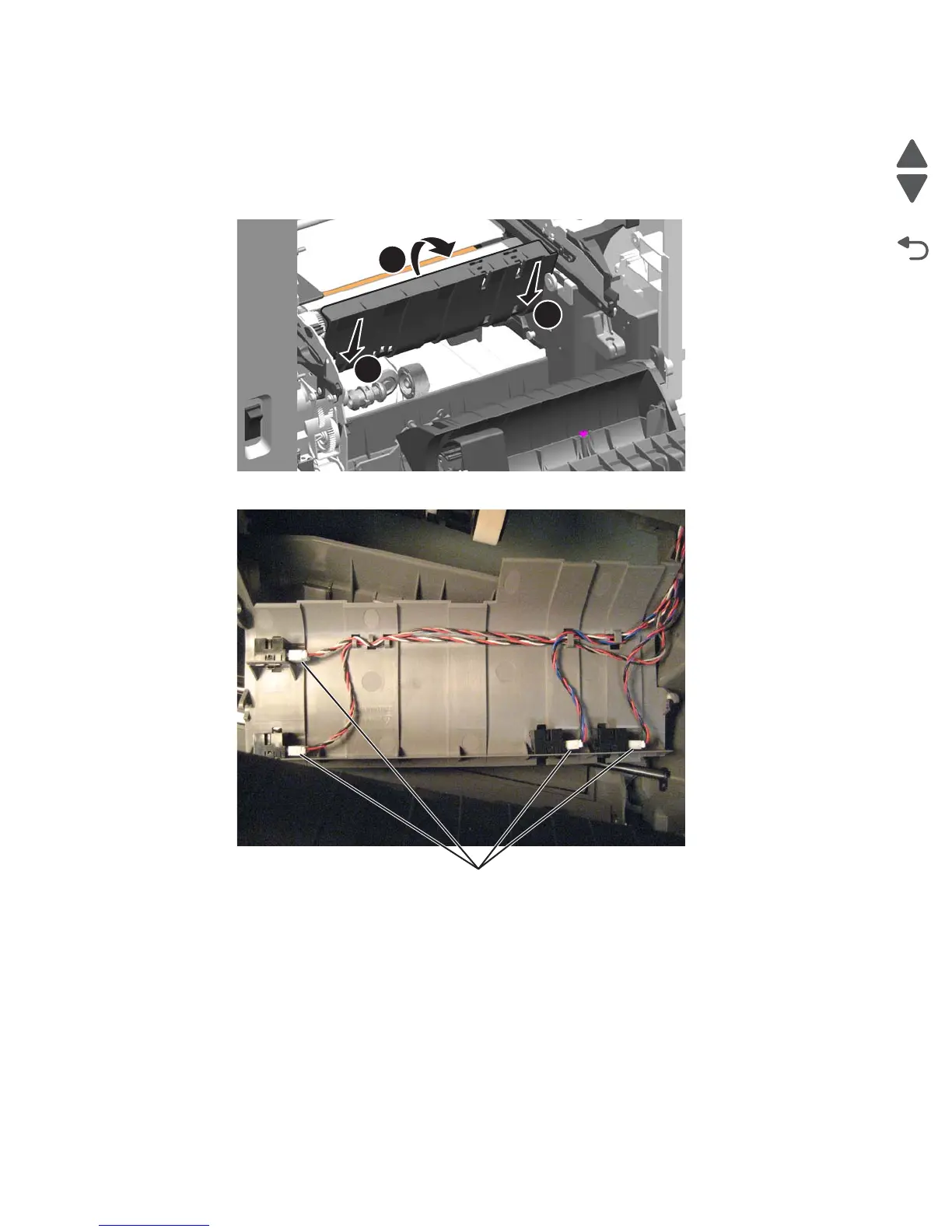

Staging deflector assembly removal

See “Left” on page 7-11 for the part number.

1. Remove the ITU assembly. See “ITU assembly removal” on page 4-77.

2. Push the top of the deflector down and rotate it back to release the upper hooks.

3. Disconnect the cables (A) from the four sensors.
