Lexmark C792 series - 2000-Sheet High-Capacity Feeder Lift Drive Motor Assembly Removal

To Next Page

To Previous Page

4-212 Service Manual

5062

Go Back

2000-sheet high-capacity feeder lift drive motor assembly removal

See“Optional 2000-sheet high-capacity feeder” on page 7-23 for the part number.

1. Remove the media tray assembly. See “2000-sheet high-capacity feeder media tray assembly

removal” on page 4-215.

2. Remove the rear cover. See “2000-sheet high-capacity feeder rear cover removal” on page 4-228.

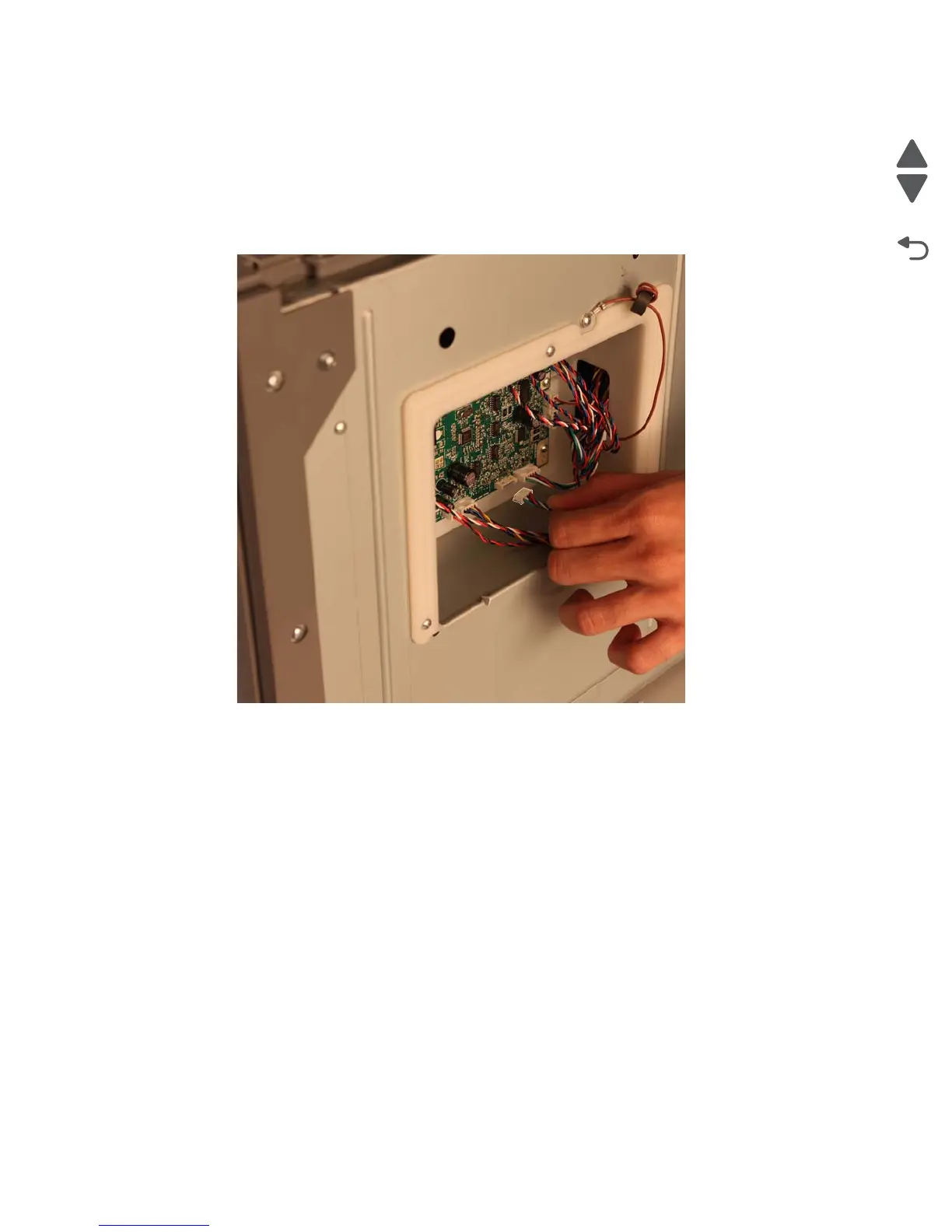

3. Disconnect the lift drive motor connector from the controller card assembly.
