Lexmark C792 series

To Next Page

To Previous Page

Repair information 4-211

5062

Go Back

Installation notes:

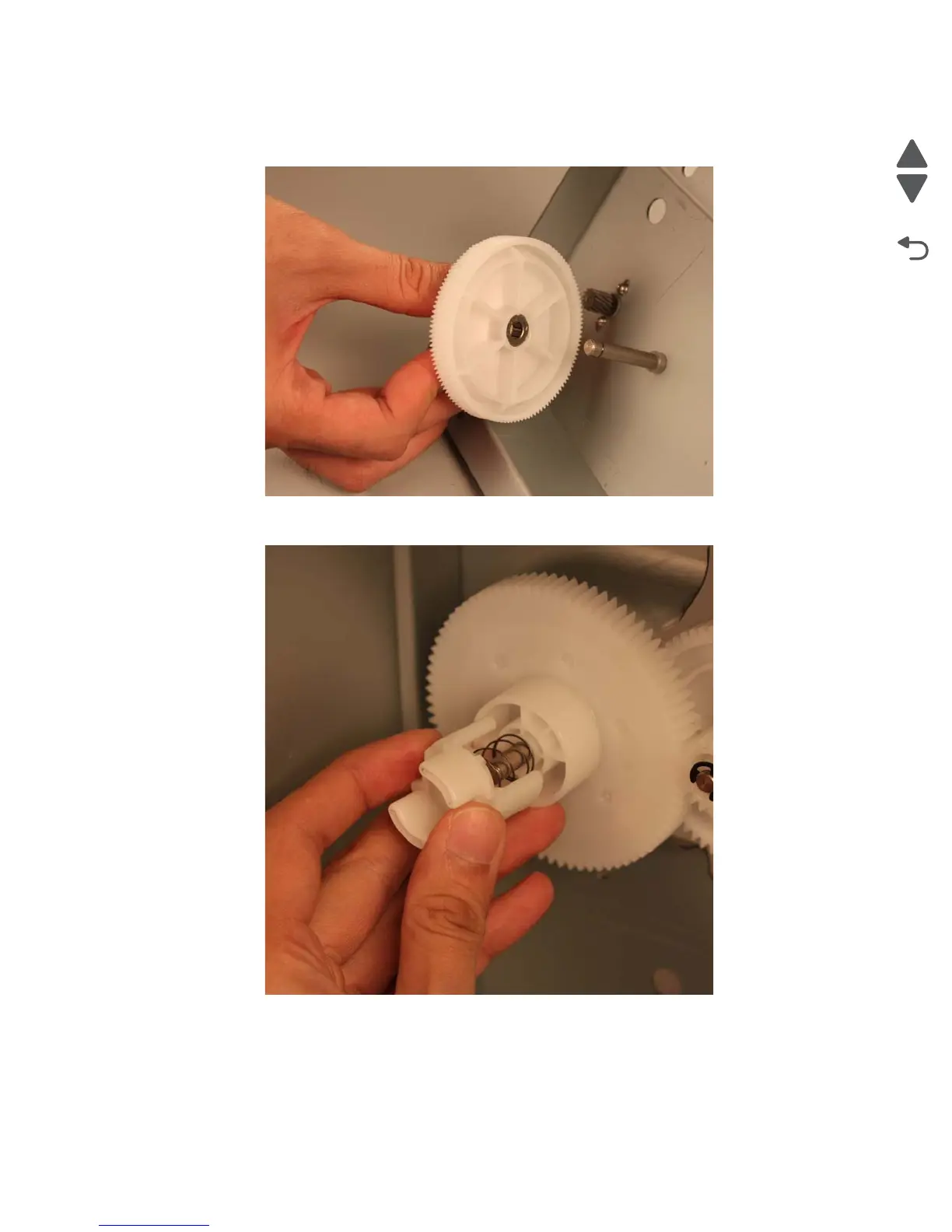

Make sure that the bearing is reinstalled as shown in the picture.

Make sure that the gear is reassembled as shown in the picture.
