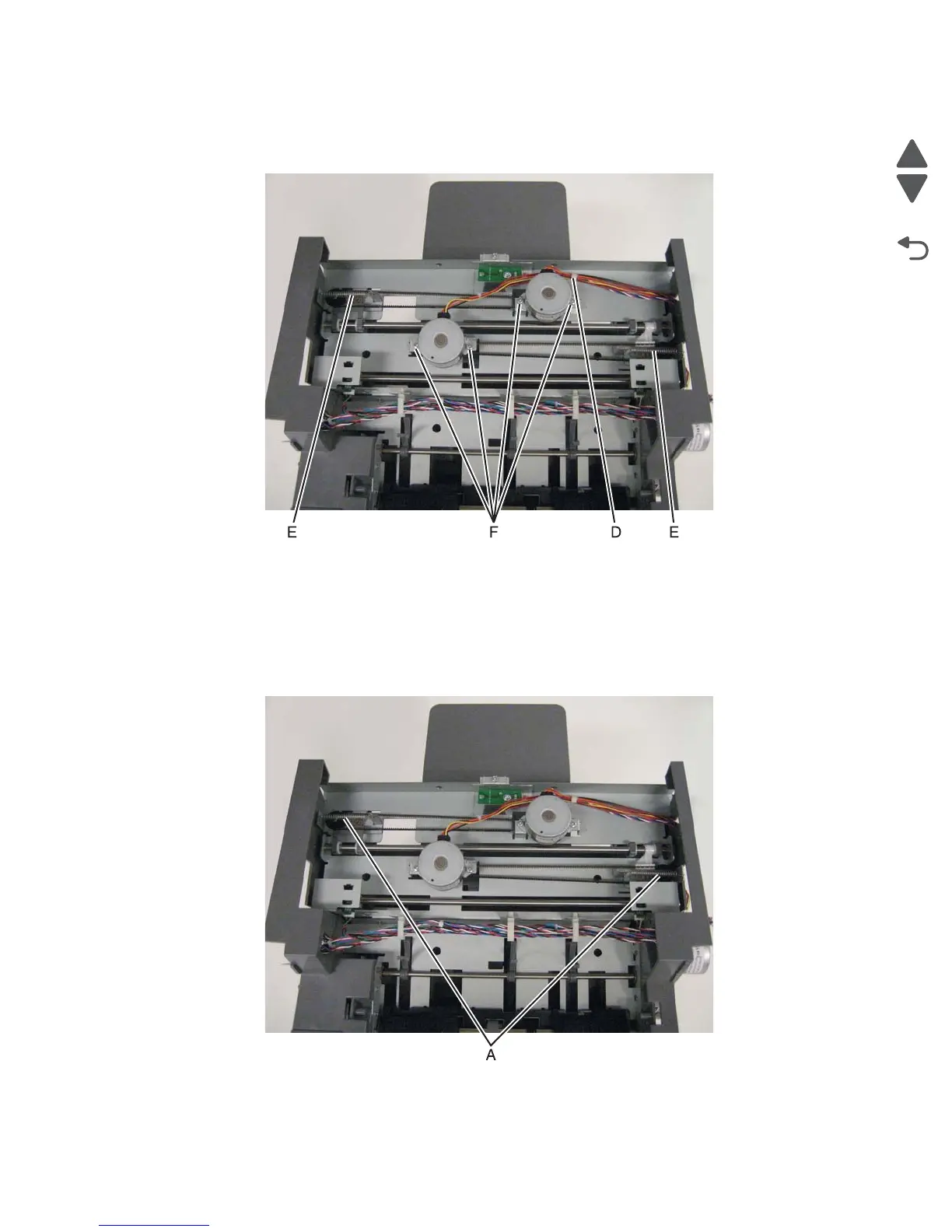

5. Clip the cable tie (D).
6. Use a spring hook to remove the tamper recoil spring (E) for the motor you are removing.
7. Remove the two screws (F) from the motor you are removing, and remove the motor assembly.
Finisher or stacker tamper recoil spring removal
See “Finisher/High-capacity output stacker assembly (continued)” on page 7-27 for the part number.
1. Remove the option from the printer.
2. Remove the top cover. See “Finisher or stacker top cover removal” on page 4-280.
3. Using a spring hook, remove the spring (A) you need to replace.
