HTU engagement roller removal

1. Remove all output options from the printer.

2. Lay the HTU on its back.

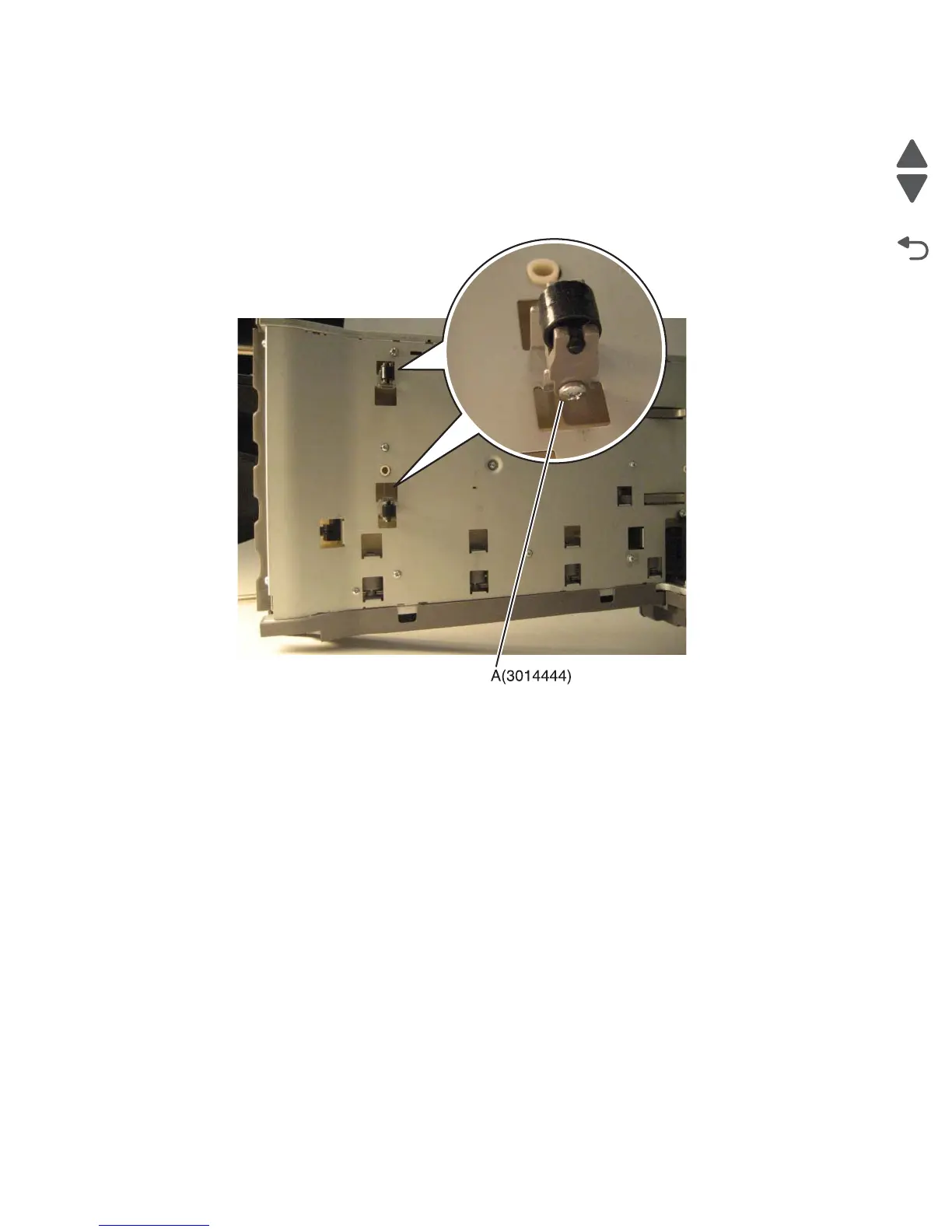

3. Remove the screw (A) to remove the roller you are replacing.
