Registration and alignment

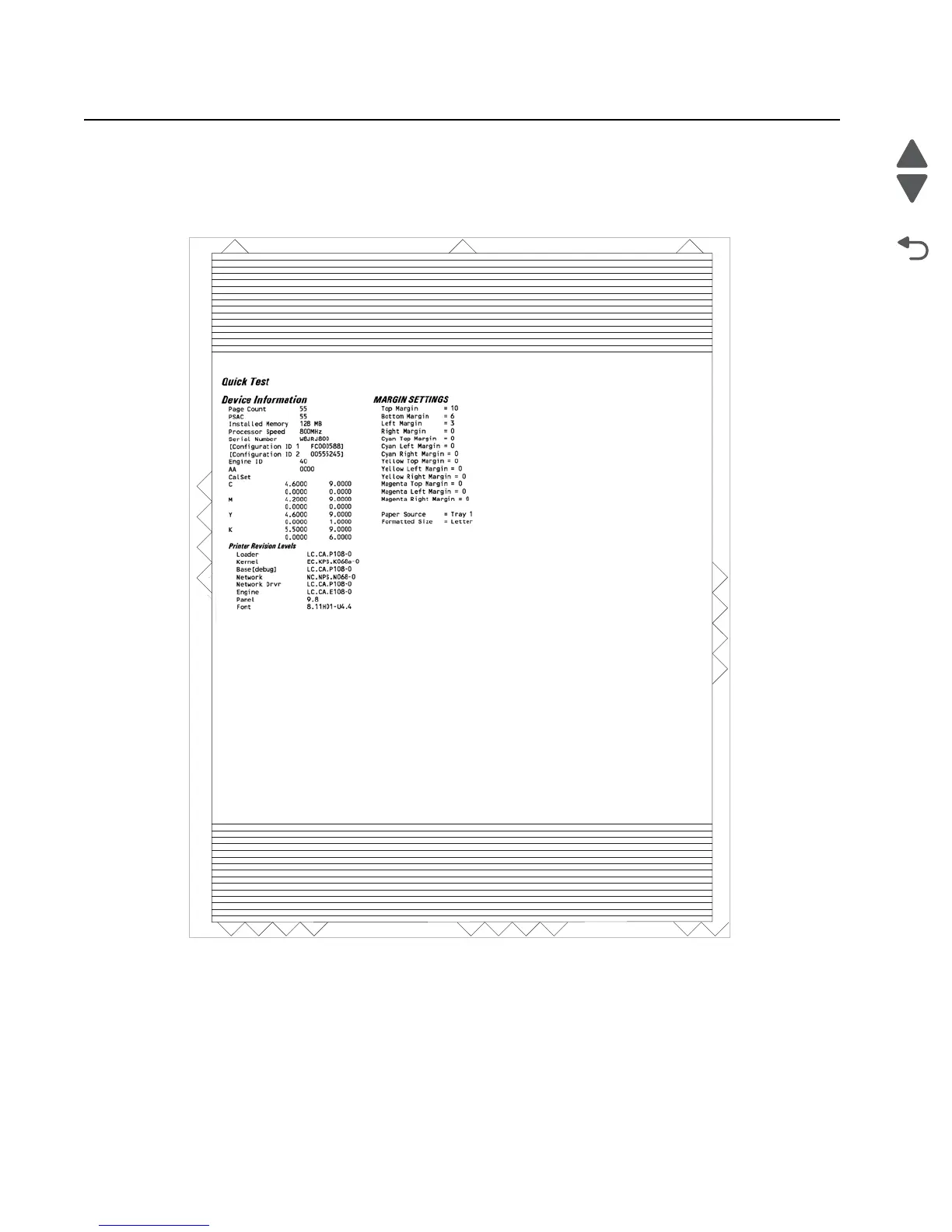

Quick Test Page

From the Diagnostics menu, select: REGISTRATION > Quick Test.
