5-bin mailbox paper jam beacon removal
See“5-bin mailbox assembly (covers)” on page 7-35 for the part number.
1. Remove the mailbox from the printer.
2. Remove the mailbox front cover. See “5-bin mailbox front cover removal” on page 4-242.
3. Remove the mailbox access door. See “5-bin mailbox access door removal” on page 4-234.

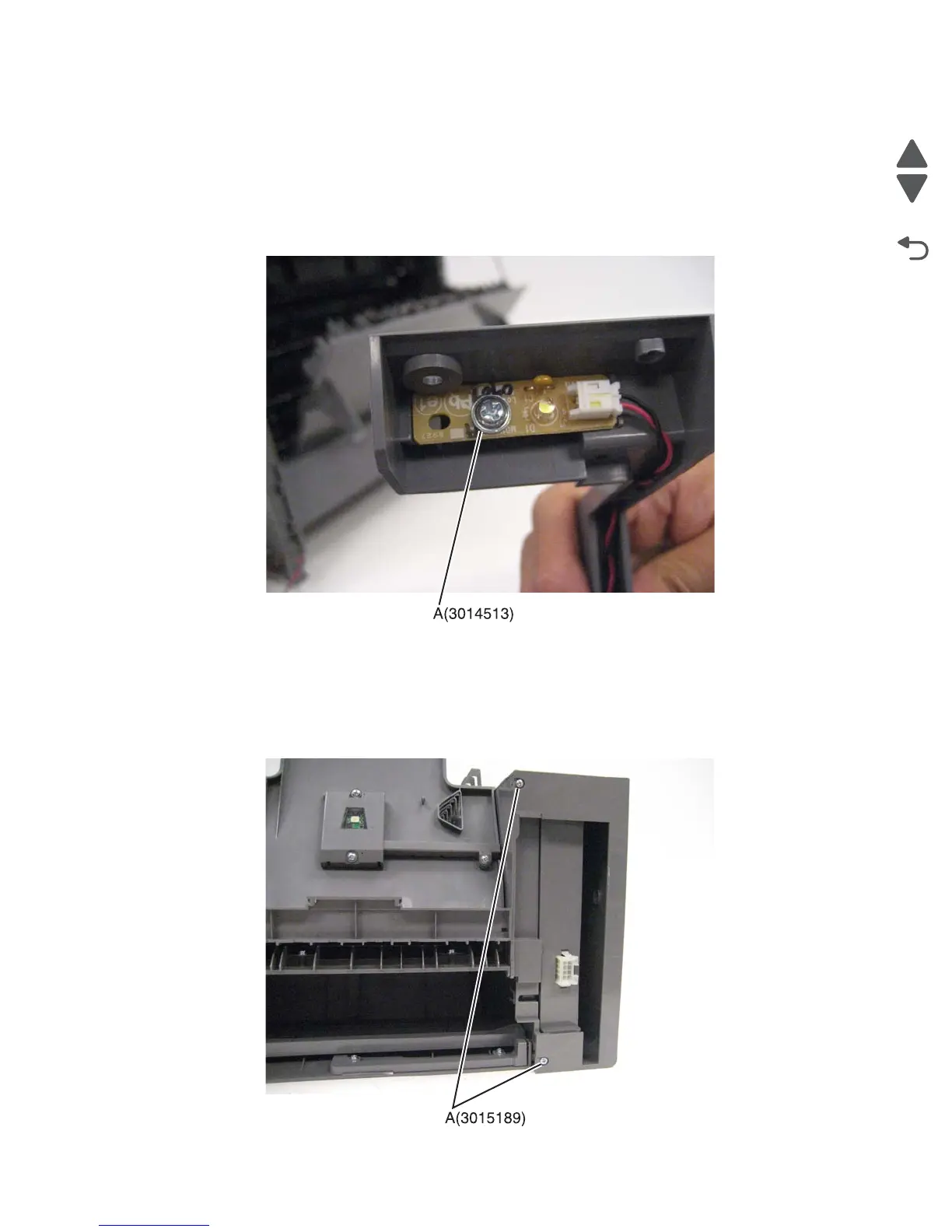

4. Remove one screw (A), and remove the beacon LED card.
5-bin mailbox rear cover removal
See“5-bin mailbox assembly (covers)” on page 7-35 for the part number.
1. Remove the mailbox from the printer.
2. Remove two screws (A) from the bottom.
