Repair information 4-19
5062
Printhead access cover removal
See “Top, right, and front covers” on page 7-3 for the part number.
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-22.
2. Remove the top cap cover. See “Top cap cover removal” on page 4-29.
Note: If you have any output options installed, then the top cap cover is already removed. Remove the
output options and HTU redrive unit instead.

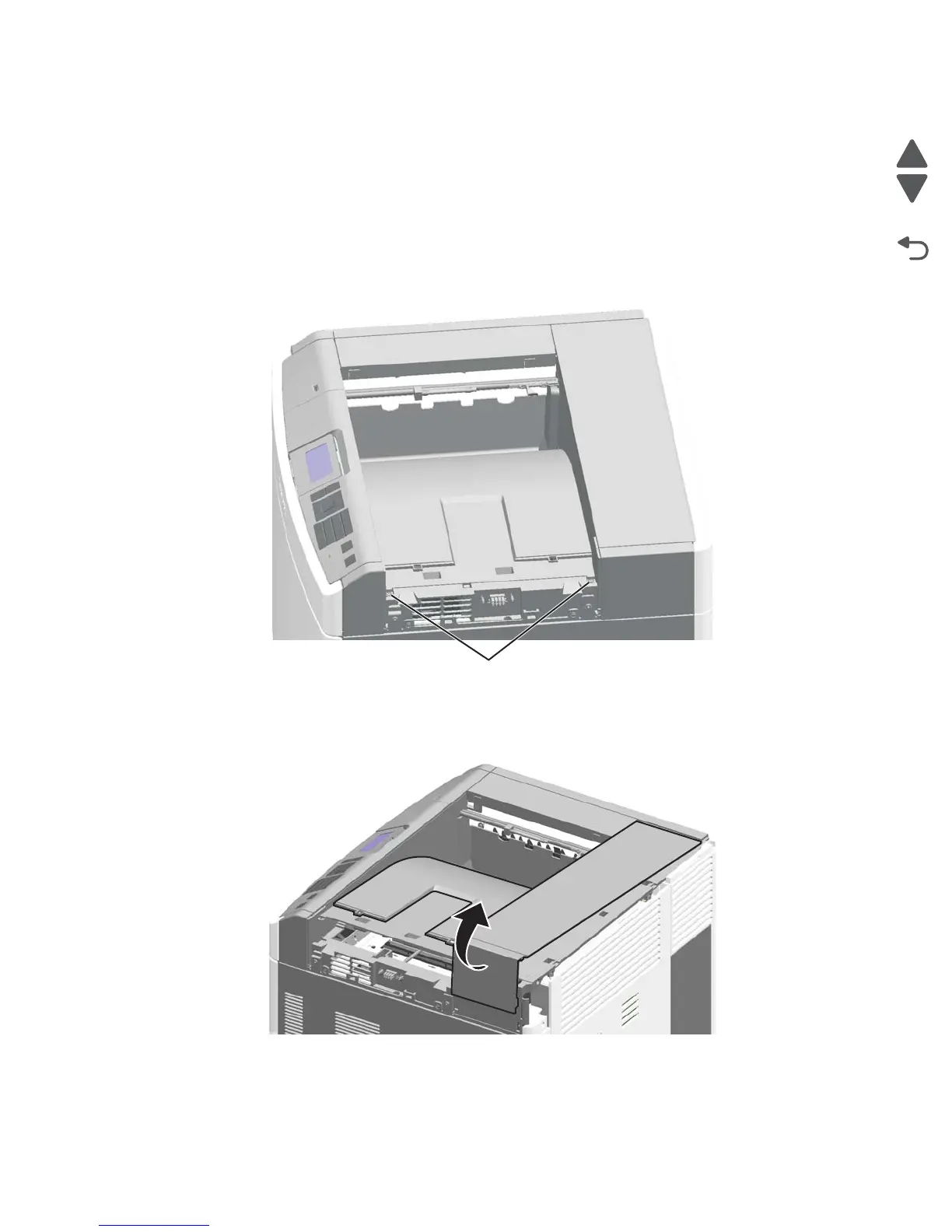

3. Remove the two screws (A) on the right side.
4. Lift and slide the cover toward the right of the printer to unlatch the tabs on the right edge, and remove the
cover.
