200.45, 200.47—Paper Jam error service check
5
Check the cable in connector JPP2 for any
other damage.
Is the cable damaged?
Replace the paper path
cable. See “Paper path
cables” on page 7-56.
Go to step 6.
6
Remove the staging deflector assembly. See
“Staging deflector assembly removal” on
page 4-140.
Is the cable connected correctly?
Go to step 7. Reseat the cable.
7
Replace the narrow media sensor. See
“Sensor (input, S1, narrow media, near
narrow media) removal” on page 4-138.
Does the error reoccur?
Replace the system board.
See “System board
removal” on page 4-151.
Problem solved.
Step Questions / actions Yes No
1 Reseat the ITU.
Does the error clear?
Problem solved. Go to step 2.
2

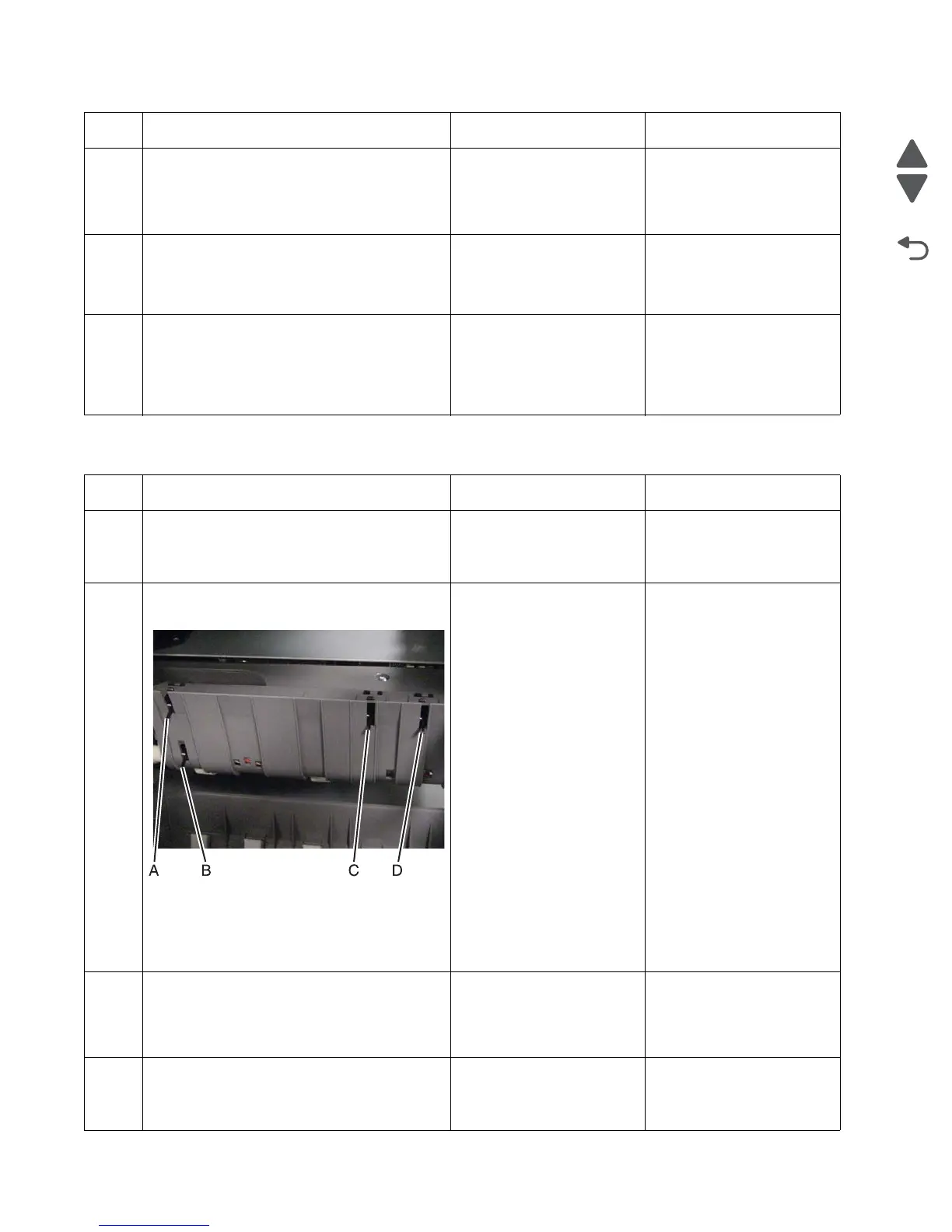

Open the left access door. Check the near
narrow media sensor flag (D) for damage.
Is the near narrow media sensor flag
damaged?
Replace the near narrow
media sensor. See
“Sensor (input, S1,
narrow media, near
narrow media) removal”
on page 4-138.
Go to step 3.
3
Is the staging deflector assembly
damaged?
Replace the staging
deflector assembly. See
“Staging deflector
assembly removal” on
page 4-140.
Go to step 4.
4
Replace the ITU.
Does the error clear?
Problem solved. Go to step 5.
Step Questions / actions Yes No
