4-304 Service Manual
5062

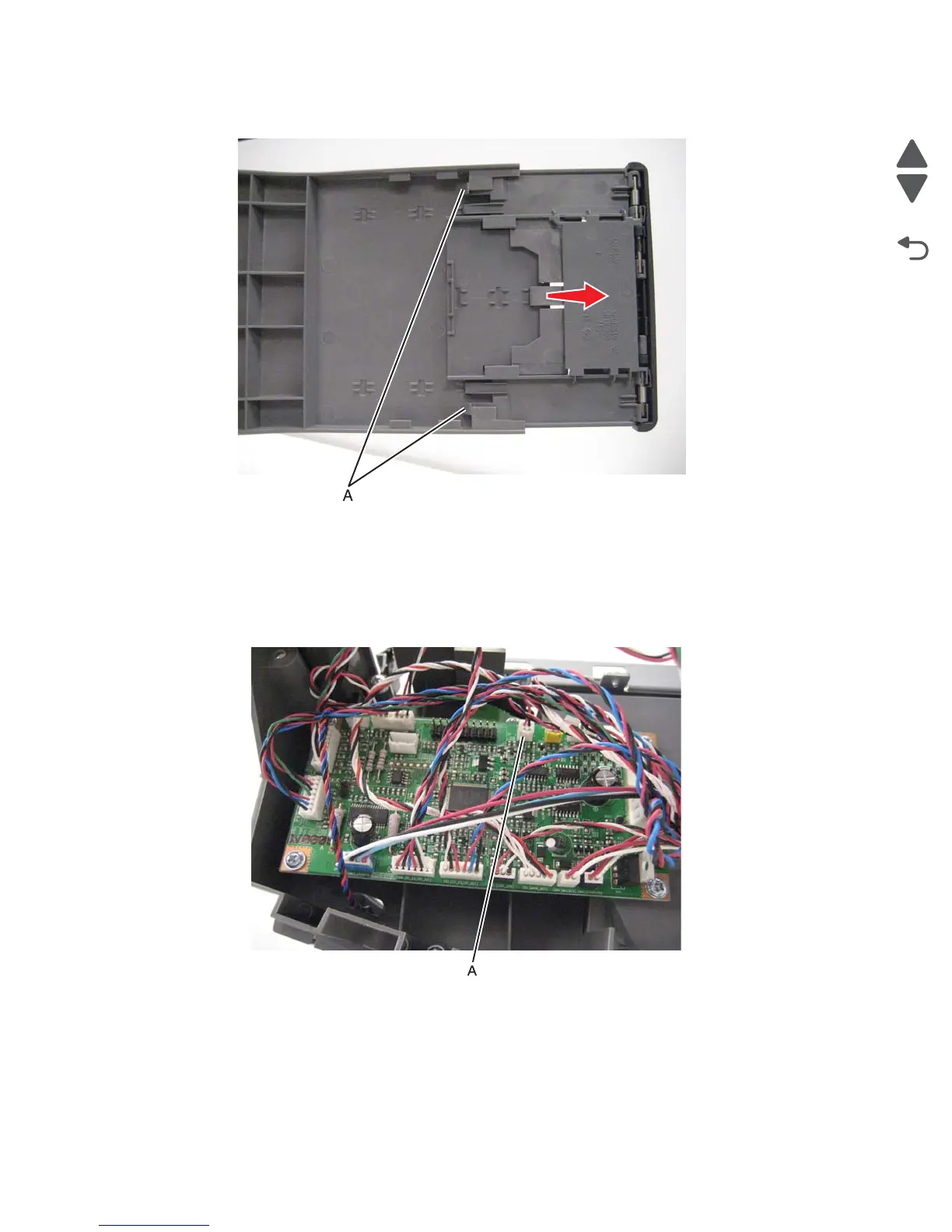

3. Press the tabs (A) to release the latches, and then pull to remove the extension.
HTU output bin solenoid removal
1. Remove the rear standard bin cover. See “HTU rear standard bin cover removal” on page 4-312.
2. Disconnect the output bin solenoid cable (A).
Note: Tie a string onto the cable so you can route the new cable through the HTU.
3. Remove the front standard bin cover. See “HTU front standard bin cover removal” on page 4-294.
